LS Tractors
-

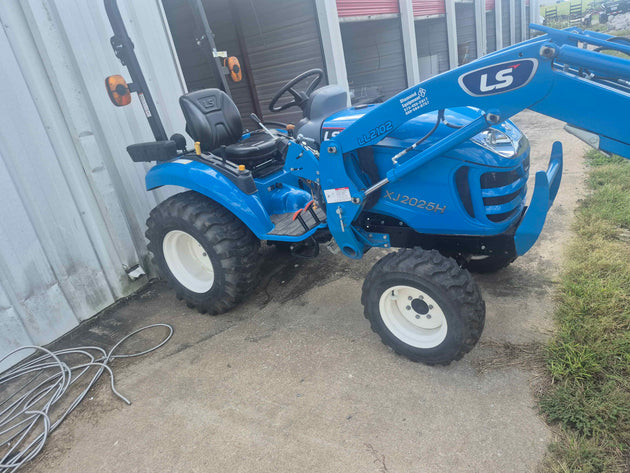

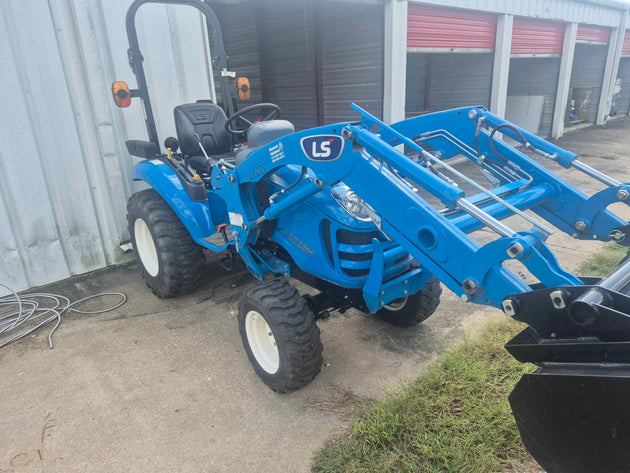

LS Tractor XJ2025H – 24.4HP
Description: The XJ Series offers versatility that compact customers appreciate. Ample strength and durability allows you to work all day with a large number of LS implements and attachments. The XJ is not simply limited to a tractor and loader configuration, it can be equipped with a backhoe, mid-mount mower, snow blower, as well numerous three-point implements. Versatility and performance make this compact tractor a leader. Specifications: Engine: Type: 3-cylinder, Indirect-injection, Water-cooled Model (Tier 4): Mitsubishi S3L2 Engine HP (Gross): 24.4 PTO HP: 18.5 Rated Speed (RPM): 2,500 Displacement (cu in): 80.4 Fuel Tank Capacity (gal): 6.6 Alternator: 12V – 50 Amps Drive Train: Transmission: Hydrostatic Drive No. of Speeds: 2 Ranges Brakes: Wet, Multi Disc Steering: Hydrostatic Power Steering PTO: Type: Independent Mid PTO: Standard (2,000 rpm) Rear PTO: Standard (540 rpm) Hydraulic System: Implement Pump (gpm): 5.9 Steering Pump (gpm): 2.6 Total Flow (gpm): 8.5 Category, 3 pt hitch: CAT 1 Hitch Lift Capacity (lb): 1,433 Lift Control Type: Manual Position Dimensions: Overall Length with 3pt (in): 103 Wheelbase (in): 59 Minimum Overall Width with Industrial Tires (in): 44.9 Height to Top of ROPS (in): 92.3 Tire Size: Industrial Front/Rear: 23 x 8.5 – 12 / 33 x 12 - 16.5 Turf Front/Rear: 23 x 8.5 – 12 / 33 x 12.5 – 16.5 Weight: Total Weight without Ballast (lbs): 1,609 Width Weight Height Length Kilogram 0 Inch
-
LS Tractor MT357H/HC/C – 57HP
Description: The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor. Hydrostatic cab models feature the all-new Servo HST with Pedal Link. Specifications: Engine Type: 3-Cylinder, liquid-cooled, Diesel, TC, CRDI Model (Tier 4): L3C19-T Engine HP (Gross): 57 PTO HP: 48.4 (Hydraulic) 45.6 (Gear) Rated Speed (RPM): 2,600 Displacement: 114.7 cu. in. Fuel Tank Capacity: 12.4 gal (Cabin) 10.6 gal (ROPS) Alternator: 12V – 70A Drive Train Transmission: Synchro Shuttle / HST 16 Forward x 16 Reverse (Gear) 3 Ranges (HST) Brakes: Wet, Multi-disc PTO Type: Independent Rear PTO RPM: 540 Hydraulic System Control System: Position/Draft Implement Pump Flow: 8.2 gpm Steering Pump Flow: 4.1 gpm (Gear) 5.5 gpm (Hydro) 6.8 gpm (Hydro Cab) Total Flow: 12.3 gpm (Gear) 13.7 gpm (Hydro) 15.0 gpm (Hydro Cab) Category (3 pt Hitch): CAT 2 Hitch Lift Capacity: 2,755 lbs Remote Valves: 2 Pair (1 Detent, 1 Std) Dimensions Overall Length (Bumper to Link): 133 in Wheelbase: 73.2 in Overall Width with Tires: 62.5 in Height to Top of ROPS: 95 in (ROPS) / 90 in (Cab) Tire Size Ag Tires (Front / Rear): 9.5 – 16 / 13.6 – 24 Industrial Tires (Front / Rear): 12 – 16.5 / 17.5L – 24 Turf Tires (Front / Rear): 28 x 8.5 – 15 / 41 x 14 – 20 Weight Total Weight (Without Ballast): 3,869 lbs 4,446 lbs (Cab) Width Weight Height Length 4380 Kilograms 0 Inch
-
LS Tractor MT357PCT/PCTC – 57HP
Description: The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive, hydrostatic transmissions or Power clutch. All models feature an ergonomic design making this a truly premium tractor. Specifications: Engine Type: 3-Cylinder, Liquid-Cooled, Diesel, Turbocharged, Common Rail Direct Injection (TC, CRDI) Model (Tier 4): L3C19-T Gross Engine Power: 57 HP PTO Power: 48.4 HP Rated Speed: 2,600 RPM Displacement: 114.7 cu. in. Fuel Tank Capacity: 12.4 gallons (Cabin) / 10.6 gallons (ROPS) Alternator: 12V, 70 Amps Drive Train Transmission: Synchro Shuttle / Power clutch Number of Speeds: 16 Forward × 16 Reverse (Gear) Brakes: Wet, Multi-Disc PTO Type: Independent Rear PTO RPM: 540 Hydraulic System Control System: Position / Draft Implement Pump Flow: 8.2 gpm Steering Pump Flow: 4.1 gpm (Gear) Total Hydraulic Flow: 12.3 gpm (Gear) 3-Point Hitch Category: CAT 2 Hitch Lift Capacity: 2,755 lbs Remote Valves: 2 Pairs (1 Detent, 1 Standard) Dimensions Overall Length, Bumper to Link: 133 in. Wheelbase: 73.2 in. Overall Width with Tires: 62.5 in. Height to Top of ROPS: 95 in. (ROPS) / 90 in. (Cab) Tire Sizes Agricultural Front / Rear: 9.5-16 / 13.6-24 Industrial Front / Rear: 12-16.5 / 17.5L-24 Turf Tire Front / Rear: 28 x 8.5-15 / 41 x 14-20 Weight Total Weight without Ballast: 3,869 lbs – 4,380 lbs (Cab) Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
-
LS Tractor MT355E/HE – 55HP
Description: The MT3E Series provides a variety of horsepower ratings and transmissions to accommodate any customers needs. Those customers requiring value and power will find plenty of both in this robust series of LS tractor. Specifications: Engine Type: Vertical Water-Cooled 4-Cycle Diesel Engine Model (Tier 4): L3C19-T Emission Standards: EPA & CARB Tier 4F, EU Stage IIIB Engine HP (Gross): 55 HP PTO HP: 44 HP (Hydrostatic Transmission) 46.7 HP (Gear Transmission) Rated Speed (RPM): 2,600 RPM Displacement: 114.7 cu. in. Fuel Tank Capacity: 13.7 gallons Drive Train Transmission: Synchro Shuttle / Constant Mesh No. of Speeds: 8 Forward x 8 Reverse Brakes: Wet, Multi-Disc PTO Type: Independent Rear PTO RPM: 540 RPM Hydraulic System Control System: Position Implement Pump Flow: 8.2 gpm Steering Pump Flow: 4.8 gpm Total Flow: 13.0 gpm 3-Point Hitch Category: CAT I Hitch Lift Capacity: 2,910 lbs Remote Valves: 2 pairs (Front), 1/2 pairs (Rear, Optional) Steering: Hydrostatic Power Steering Dimensions Overall Length (Bumper to Link): 125 in. Wheelbase: 68 in. Overall Width with Tires: 74.8 in. Height to Top of ROPS: 100 in. Tire Sizes Agricultural Tires (Front / Rear): 9.5-16 / 14.9-24 Industrial Tires (Front / Rear): 10.0-16.5 / 17.5L-24 Turf Tires (Front / Rear): 29 x 12.50-15 / 44 x 18.00-20 Narrow Agricultural Tires (Front / Rear): 7.0 – 14 / 9.5 – 24 Weight Total Weight without Ballast: 3,724 lbs Width Weight Height Length Kilogram 0 Inch
-
LS Tractor MT347H/HC/C – 47HP
Description: The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor. Specifications: Engine Type: 3 Cylinder, Liquid-Cooled, Diesel, Turbocharged, Common Rail Direct Injection (CRDI) Model (Tier 4): L3C19-T Engine HP (Gross): 47 hp PTO HP: 39.9 hp (Hydrostatic) / 37.6 hp (Gear) Rated Speed: 2,600 RPM Displacement: 114.7 cu. in. Fuel Tank Capacity: 12.4 gal (Cabin) / 10.6 gal (ROPS) Alternator: 12V – 70 A Drive Train Transmission: Synchro Shuttle / HST Number of Speeds: F16 x R16 (Gear) / 3 Ranges (HST) Brakes: Wet, Multi-Disc PTO Type: Independent Rear PTO RPM: 540 Hydraulic System Control System: Position/Draft Implement Pump: 8.2 gpm Steering Pump: Gear: 4.1 gpm Hydrostatic: 5.5 gpm (Standard) / 6.8 gpm (Cab) Total Flow: Gear: 12.3 gpm Hydrostatic: 13.7 gpm (Standard) / 15.0 gpm (Cab) Category (3-pt Hitch): CAT 1 Hitch Lift Capacity: 2,755 lbs Remote Valves: 2 PAIR Front, 2 PAIR Rear (1 Detent, 1 Standard) Dimensions Overall Length (Bumper to Link): 133 in. Wheelbase: 73.2 in. Overall Width with Tires: 62.5 in. Height to Top of ROPS: 95 in. (ROPS) / 90 in. (Cab) Tire Size Agricultural (Front / Rear): 9.5 – 16 / 13.6 – 24 Industrial (Front / Rear): 12 – 16.5 / 17.5L – 24 Turf Tire (Front / Rear): 28 x 8.5 – 15 / 41 x 14 – 20 Weight Total Weight (Without Ballast): 3,935 – 4,446 lbs (Cab) Width Weight Height Length 3869 Kilograms 0 Inch
-
LS Tractor MT345E/HE – 45HP
Description: The MT3E Series provides a variety of horsepower ratings and transmissions to accommodate any customers needs. Those customers requiring value and power will find plenty of both in this robust series of LS tractor. Specifications: Engine Type: Vertical Water Cooled 4 Cycle Diesel Engine Model (Tier 4): L3C19-T Emissions: EPA & CARB Tier 4F, EU Stage IIIB Gross Horsepower: 45 HP (33.5 HP) PTO Horsepower: 36 – 38.2 HP Rated Speed: 2,600 RPM Displacement: 114.7 cu. in. Fuel Tank Capacity: 13.7 gallons Drive Train Transmission: HST (Hydrostatic Transmission) Number of Speeds: 3 Ranges Brakes: Wet, Multi-Disc Steering: Hydrostatic Power Steering PTO (Power Take-Off) Type: Independent Rear RPM: 540 Hydraulic System Control System: Position Implement Pump Flow: 8.2 GPM Steering Pump Flow: 4.8 GPM Total Flow: 13.0 GPM Category (3 pt hitch): CAT 1 Hitch Lift Capacity: 2,910 lbs Remote Valves: 2 pairs (Front), 1/2 pairs (Rear, Optional) Steering: Hydrostatic Power Steering Dimensions Overall Length (Bumper to Link): 125 in. Wheelbase: 68 in. Overall Width with Tires: 74.8 in. Height to Top of ROPS: 100 in. Tire Size Options Ag Tires: Front: 9.5-16 Rear: 14.9-24 Industrial Tires: Front: 10.0-16.5 Rear: 17.5L-24 Turf Tires: Front: 29 x 12.50-15 Rear: 44 x 18.00-20 Narrow Ag Tires: Front: 7.0 – 14 Rear: 9.5 – 24 Weight Total Weight (Without Ballast): 3,724 lbs (E) – 3,750 lbs (HE) Width Weight Height Length Kilogram 0 Inch
-
LS Tractor MT342H/HC/C – 42HP
Description: The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor. Specifications: ENGINE: Type: 3-Cylinder, Liquid-Cooled, Diesel, Turbocharged (TC), Common Rail Direct Injection (CRDI) Model (Tier 4): L3C19-T Gross Engine HP: 42 hp PTO HP: 35.7 hp (Hydro) / 33.6 hp (Gear) Rated Speed: 2,600 RPM Displacement: 114.7 cubic inches Fuel Tank Capacity: 12.4 gallons (Cabin) 10.6 gallons (ROPS) Alternator: 12 V – 70 A DRIVE TRAIN: Transmission: Synchro Shuttle / HST (Hydrostatic Transmission) Number of Speeds: F16 x R16 (Gear) 3 Ranges (HST) Brakes: Wet, Multi-disc PTO (Power Take-Off): Type: Independent Rear PTO Speed: 540 RPM HYDRAULIC SYSTEM: Control System: Position/Draft control Implement Pump Flow: 8.2 gpm Steering Pump Flow: 4.1 gpm (Gear) 5.5 gpm (Hydro) 6.8 gpm (Hydro Cab) Total Flow: 12.3 gpm (Gear) 13.7 gpm (Hydro) 15.0 gpm (Hydro Cab) 3-Point Hitch Category: Category I (CAT I) Hitch Lift Capacity: 2,755 lbs Remote Valves: 2 Front 2 Rear (1 Detent, 1 Standard) DIMENSIONS: Overall Length (Bumper to Link): 133 inches Wheelbase: 73.2 inches Overall Width with Tires: 62.5 inches Height to Top of ROPS: 95 inches (ROPS) / 90 inches (Cab) TIRE SIZES: Agricultural (Ag) Front / Rear: 9.5 – 16 / 13.6 – 24 Industrial (IND) Front / Rear: 12 – 16.5 / 17.5L – 24 Turf Tires Front / Rear: 28 x 8.5 – 15 / 41 x 14 – 20 WEIGHT: Total Weight without Ballast: 3,935 lbs (ROPS) 4,446 lbs (Cab) Width Weight Height Length Kilogram 0 Inch
-
LS Tractor MT342H/HC/C – 42HP
Description: The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor. Specifications: Engine Type: 3-Cylinder, Liquid-Cooled, Diesel, Turbocharged, Common Rail Direct Injection (CRDI) Model (Tier 4): L3C19-T Engine Horsepower (Gross): 42 HP PTO Horsepower: 35.7 HP (Hydro) / 33.6 HP (Gear) Rated Speed: 2,600 RPM Displacement: 114.7 cu. in. Fuel Tank Capacity: 12.4 gallons (Cabin) / 10.6 gallons (ROPS) Alternator: 12V – 70 Amps Drive Train Transmission: Synchro Shuttle / Hydrostatic Transmission (HST) Number of Speeds: F16 x R16 (Gear) / 3 Ranges (HST) Brakes: Wet, Multi-Disc PTO (Power Take-Off) Type: Independent Rear PTO Speed: 540 RPM Hydraulic System Control System: Position/Draft Implement Pump Flow: 8.2 gpm Steering Pump Flow: Gear: 4.1 gpm Hydro: 5.5 gpm Hydro (Cab): 6.8 gpm Total Flow: Gear: 12.3 gpm Hydro: 13.7 gpm Hydro (Cab): 15.0 gpm 3-Point Hitch Category: CAT 1 Hitch Lift Capacity: 2,755 lbs Remote Valves: 2 Front, 2 Rear (1 Detent, 1 Standard) Dimensions Overall Length (Bumper to Link): 133 in. Wheelbase: 73.2 in. Overall Width with Tires: 62.5 in. Height to Top of ROPS: 95 in. (ROPS) / 90 in. (Cab) Tire Sizes Ag Tires (Front/Rear): 9.5 – 16 / 13.6 – 24 Industrial Tires (Front/Rear): 12 – 16.5 / 17.5L – 24 Turf Tires (Front/Rear): 28 x 8.5 – 15 / 41 x 14 – 20 Weight Total Weight Without Ballast: 3,935 lbs (ROPS) / 4,446 lbs (Cab) Width Weight Height Length 3869 Kilograms 0 Inch
-
LS Tractor MT468 – 68HP
Description: The MT4 features a variety of configurations enabling you to find the exact configuration you need. A ROPS and Cab version are available with highly featured operator platforms/cabs. The ergonomic design provides all-day comfort, as the robust frame provides high-capacity front loader and three point lift. Specifications: Engine Type: Vertical, water-cooled, 4-cycle diesel engine Model (Tier 4): L4C25-T Gross Engine HP: 68 HP PTO HP: 60 HP Rated Speed: 2,500 RPM Displacement: 152.8 cu. in. Fuel Tank Capacity: 21.1 gallons Alternator: 12V – 70A Drive Train Transmission: Synchro Shuttle / Power Shuttle No. of Speeds: F16 x R16 Brakes: Wet, multi-disc Steering: Hydrostatic power steering PTO Type: Independent Rear PTO Speed: 540 RPM Hydraulic System Control System: Position/Draft Implement Pump Flow: 9.9 GPM Steering Pump Flow: 4.6 GPM Total Hydraulic Flow: 14.5 GPM 3-Point Hitch Category: CAT II Hitch Lift Capacity: 4,079 lbs Remote Valves: 2 pairs (Front), 2 pairs (Rear) (1 detent, 1 standard) Dimensions Overall Length with 3-Point Hitch: 138.6 in. Wheelbase: 80.3 in. Minimum Overall Width with Ag Tires: 70 in. Height to Top of Cab with Ag Tires: 103 in. Tire Sizes Agricultural (Front/Rear): 9.5 – 20 / 16.9 – 24 Industrial (Front/Rear): 10.5/80 – 18 / 19.5L – 24 Weight Total Weight without Ballast: 4,674 lbs Width Weight Height Length 4380 Kilograms 0 Inch
-
LS Tractor MT242HC- 42.5HP
Description: Specifications: Engine Type: 4-Cylinder, Liquid-Cooled Diesel, Naturally Aspirated, Common Rail Direct Injection (CRDI) Model (Tier 4): YANMAR Engine Horsepower (Gross): 42.5 HP PTO Horsepower: 34.8 HP Rated Speed: 2,600 RPM Displacement: 133.6 cu. in. Fuel Tank Capacity: 11.4 gallons Alternator: 12V – 55 Amps Drive Train Transmission Type: Hydrostatic Transmission (HST) Number of Speeds: 3 Ranges Brakes: Wet, Multi-disc Steering: Hydrostatic Power Steering PTO (Power Take-Off) Type: Independent Rear PTO Speed: 540 RPM (Standard) Hydraulic System Control System: Position Implement Pump Flow: 6.7 gpm Steering Pump Flow: 5.0 gpm Total Flow: 11.7 gpm 3-Point Hitch Category: CAT I Hitch Lift Capacity (at Hitch End): 1,808 lbs Remote Valves: 1 Pair Dimensions Overall Length (Frame to Link): 125 in. Overall Width with Tires: 66 in. Wheelbase: 74 in. Height to Top: 90 in. Tire Size Ag Tires (Front/Rear): 7 – 14 / 11.2 – 24 Industrial Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20 Versa Turf Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20 Turf Tires (Front/Rear): 25 x 8.50 – 14 / 41 x 14.00 – 20 Weight Total Weight without Ballast: 3,805 lbs Width Weight Height Length 3805 Kilograms 0 Inch
-
LS Tractor MT242E – 42.5HP
Description: Specifications: Engine Type: 4-cylinder, liquid-cooled, Diesel, CRDI, NA Model (Tier 4): YANMAR Engine HP (Gross): 42.5 HP PTO HP: 35.4 HP Rated Speed: 2,600 RPM Displacement: 133.6 cu. in. Fuel Tank Capacity: 10.6 gal Alternator: 12V – 55 Amps Drive Train Transmission Type: Synchro Shuttle Speeds: F12 x R12 Brakes: Wet, Multi-disc Steering: Hydrostatic Power Steering PTO Type: Independent Rear RPM: 540 (Standard) Hydraulic System Control System: Position Implement Pump: 7.4 gpm Steering Pump: 5.0 gpm Total Flow: 12.4 gpm 3-Point Hitch Category: CAT I Hitch Lift Capacity: 1,808 lbs Remote Valves: Optional Dimensions Overall Length (Frame to Link): 125 in. Overall Width (with Tires): 66 in. Wheelbase: 74 in. Height to Top: 95 in. Tire Sizes Ag Tires (Front / Rear): 7 – 14 / 11.2 – 24 Industrial Tires (Front / Rear): 27x8.50-15 / 43x16.00-20 Turf Tires (Front / Rear): 25x8.50-14 / 41x14.00-20 Weight Total Weight (without ballast): 3,250 lbs Width Weight Height Length Kilogram 0 Inch
-
LS Tractor MT232HC- 31.7HP
Description: Specifications: ENGINE Type: 3 Cylinder, Liquid-cooled Diesel, Naturally Aspirated (NA), Common Rail Direct Injection (CRDI) Model (Tier 4): YANMAR Engine HP (Gross): 31.7 hp PTO HP: 26.2 hp Rated Speed: 2,600 RPM Displacement: 100.2 cu. in. Fuel Tank Capacity: 11.4 gallons Alternator: 12V – 55 Amps DRIVE TRAIN Transmission Type: Hydrostatic (HST) Number of Speeds: 3 Ranges Brakes: Wet, Multi-disc Steering: Hydrostatic Power Steering PTO (Power Take-Off) Type: Independent Rear PTO Speed: 540 RPM (Standard) HYDRAULIC SYSTEM Control System: Position Implement Pump Flow: 6.7 gpm Steering Pump Flow: 5 gpm Total Hydraulic Flow: 11.7 gpm 3-Point Hitch Category: CAT I Hitch Lift Capacity: 1,808 lbs Remote Valves: 1 Pair DIMENSIONS Overall Length (Frame to Link): 125 inches Overall Width with Tires: 66 inches Wheelbase: 69 inches Height to Top of ROPS: 90 inches TIRE SIZE OPTIONS Agricultural Tires (Front/Rear): 7 – 14 / 11.2 – 24 Industrial Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20 Versa Turf Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20 Turf Tires (Front/Rear): 25 x 8.50 – 14 / 41 x 14.00 – 20 WEIGHT Total Weight (without ballast): 3,721 lbs Width Weight Height Length 3721 Kilograms 0 Inch
When it comes to finding parts for specific tractor models, you've got a range of options to ensure your equipment runs smoothly. Here's a detailed list of the models for which parts are readily available:
- Explorer Series: Focused on the Explorer 75T model, designed to handle tough terrains.
- Compact and Utility Models:
- Advanced Models:
- Heavy-Duty Options:
- High-Capacity Models:
- Land Series:
This lineup ensures that whether you're dealing with compact utility tasks or demanding agricultural operations, there are parts available to keep any of these models up and running efficiently.
How to Ensure Your Tractor Parts Are Compatible with Your Model and Year
When it comes to ordering the right tractor parts, compatibility with your specific model and year is crucial. Here's how you can make the right choice:
Start by carefully identifying the model of your tractor. Look for parts that include a detailed list of compatible tractor models. This information is usually clearly stated to help you determine if a part will fit your machine.
Pay close attention to any specific years that are mentioned. Some parts are designed for certain model years due to design tweaks and changes made by manufacturers. Ensuring that your tractor's year matches those listed can prevent compatibility issues.
Most part listings include a 'Fits Models' section. This list is invaluable for making sure you're selecting a part that will seamlessly integrate with your tractor.
If you’re unsure, consult a professional or a trusted dealer. They can offer expert advice and may even have access to cross-reference systems that can confirm part compatibility.
Before finalizing your order, double-check the model and year once more to ensure everything aligns. This simple step can save you from unnecessary hassle and return processes.
Following these steps will help you select the right parts the first time, ensuring your tractor remains in top working condition without unnecessary delays.
