Description
Description:

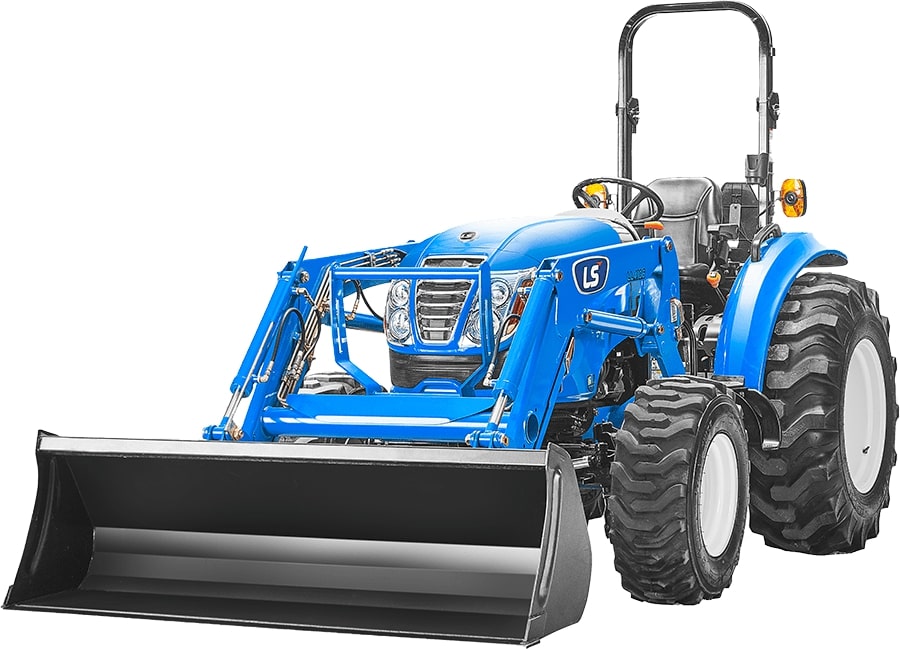

The MT4 features a variety of configurations enabling you to find the exact configuration you need. A ROPS and Cab version are available with highly featured operator platforms/cabs. The ergonomic design provides all-day comfort, as the robust frame provides high-capacity front loader and three point lift.
Specifications:
Engine
- Type: Vertical, water-cooled, 4-cycle diesel engine
- Model (Tier 4): L4C25-T
- Gross Engine HP: 68 HP
- PTO HP: 60 HP
- Rated Speed: 2,500 RPM
- Displacement: 152.8 cu. in.
- Fuel Tank Capacity: 21.1 gallons
- Alternator: 12V – 70A
Drive Train
- Transmission: Synchro Shuttle / Power Shuttle
- No. of Speeds: F16 x R16
- Brakes: Wet, multi-disc
- Steering: Hydrostatic power steering
PTO
- Type: Independent
- Rear PTO Speed: 540 RPM
Hydraulic System
- Control System: Position/Draft
- Implement Pump Flow: 9.9 GPM
- Steering Pump Flow: 4.6 GPM
- Total Hydraulic Flow: 14.5 GPM
- 3-Point Hitch Category: CAT II
- Hitch Lift Capacity: 4,079 lbs
- Remote Valves: 2 pairs (Front), 2 pairs (Rear) (1 detent, 1 standard)
Dimensions
- Overall Length with 3-Point Hitch: 138.6 in.
- Wheelbase: 80.3 in.
- Minimum Overall Width with Ag Tires: 70 in.
- Height to Top of Cab with Ag Tires: 103 in.
Tire Sizes
- Agricultural (Front/Rear): 9.5 – 20 / 16.9 – 24
- Industrial (Front/Rear): 10.5/80 – 18 / 19.5L – 24
Weight
- Total Weight without Ballast: 4,674 lbs
