Explore the full lineup of TYM Tractors at Diamond R Equipment—from sub-compact models to heavy-duty utility tractors. Experience reliable performance, innovative features, and financing options to meet any operation’s needs.
TYM Tractors
-
TB65 Backhoe
TB65 Backhoe The TB65 is engineered to handle your scaled-up requirements. This TYM backhoe attachment offers enhanced functionality without compromising balance with an enhanced dig depth and wider swing angle. Digging depth 80.4 in. / 2042 mm Loading height 63 in. / 1602 mm Backhoe reach 117.7 in. / 2989 mm Width Weight Height Length
-

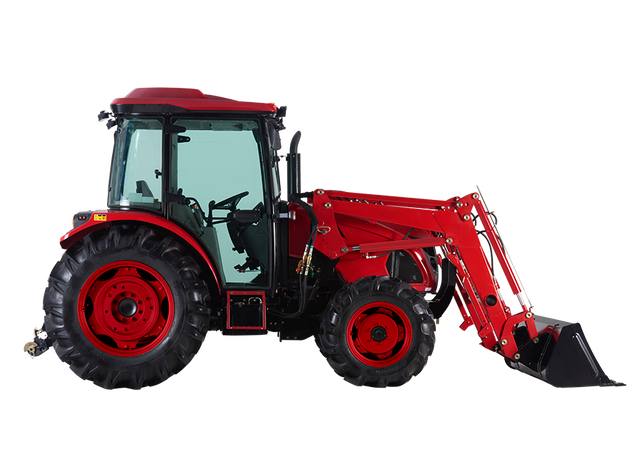

TYM T754PSC Cab Tractor
TYM T754PSC Cab Tractor The TYM Utility tractor provides additional raw work capability with nearly 1,000 additional hitch capacity, and a larger loader bucket. It’s ideal for material handling, land clearing, forestry, construction, and arable farming. Features: TX75 Self Leveling Front-End Loader Lift capacity 3325# 83″ Quick Attach Bucket Power Shuttle Transmission 74 hp Diesel 4-cylinder, liquid-cooled Deutz engine Category II 3-Pt.Hitch (lift capacity: 5154#) Cab with full A/C and Heating Hydrostatic power steering with tilt External lever to adjust rear implements Suspension seat for operator comfort and security Digital instrument panel Specification: General Drive System: 4 Wheel Drive Steering: Hydrostatic Clutch: Wet Multi Plate Brake: Wet Disc Gross Engine Power: 74 hp | 55.4 kW Engine Manufacturer: Deutz TCD2.9L4 Type: Turbo Gross Engine Power: 74 hp | 55.4 kW PTO Power: 64.1 hp | 47.8 kW Rated Engine Speed: 2200 rpm Number of Cylinders: 4 Displacement: 177 cu. in. Air Cleaner: Dual Dry Alternator: 12V, 95A Fuel System: CRDI Powertrain Transmission Type: Power Shuttle No. of Speeds: F16xR16 (creep interlock) Max. Traveling Speed: 24.1 mph Brakes: Wet Disc Steering: Hydrostatic Clutch: Wet Multi Plate Hydraulic System Pump Type: Dual Gear Pump Implement Flow: 10.3 gpm Steering Flow: 5.8 gpm Total Flow: 16.1 gpm 3-Point Hitch Category: II Hitch Lift Capacity: 5154 lb Hitch Lift Capacity at 24" Behind Link Ends: 3481 lb Lift Control Type: Position/Draft/Mech No. of Standard Remote Valves: 2 PTO PTO Type: Independent PTO Control: Electric/Hydro PTO Rear: 540/750, 540/1000 (Optional) rpm Capacities Fuel Tank: 23.8 gal Coolant: 10.6 qt Crankcase: 8.5 qt Transmission/Hydraulics System: 18 qt Front Axle: 4.3 gal Standard Tires R1 Agricultural Front: FSTR 280/85R24 TL (11R24) Rear: FSTR 420/85R30 TL (16.9R30) R4 Industrial Front: Trac Chief 15-19.5 NHS TL 6PR Rear: Xtra Grip 18.4-24 NHS TL 8PR Upgrades for Series 6, T754 R1 Agricultural Tires Front: FSTR 280/85R24 TL (11R24) Rear: FSTR 420/85R30 TL (16.9R30) R4 Industrial Tires Front: Trac Chief 15-19.5 NHS TL 6PR Rear: Xtra Grip 18.4-24 NHS TL 8PR Dimensions & Weights Overall Length (with 3-Point Hitch): 157.5 in. Overall Width: 76.4 in. Wheelbase: 86.1 in. Height to Top of ROPS: 103.3 in. Minimum Ground Clearance: 18.3 in. Minimum Turn Radius (without Brakes): 141.3 in. Minimum Turn Radius (with Brakes): 145.7 in. Alternate Minimum Turn Radius (without Brakes): 162.8 in. Weight (with Cab): 6316 lb Width Weight Height Length 0 Inch 6315 Pounds 0 Inch 0 Inch
-
T394H Tractor
T394H Tractor Series 2, Compact Tractor Take on harder tasks in smaller spaces with the T394, designed to be compact, proven to be durable and engineered to be efficient. This tractor is a workhorse in greenhouses, orchards and more. Ideal for arable farming, construction, snow clearing and landscaping. 37.4 hp Diesel Engine Hydrostat Transmission Hitch lift capacity: 2639 lb TX39H Front End Loader Width Weight Height Length
-

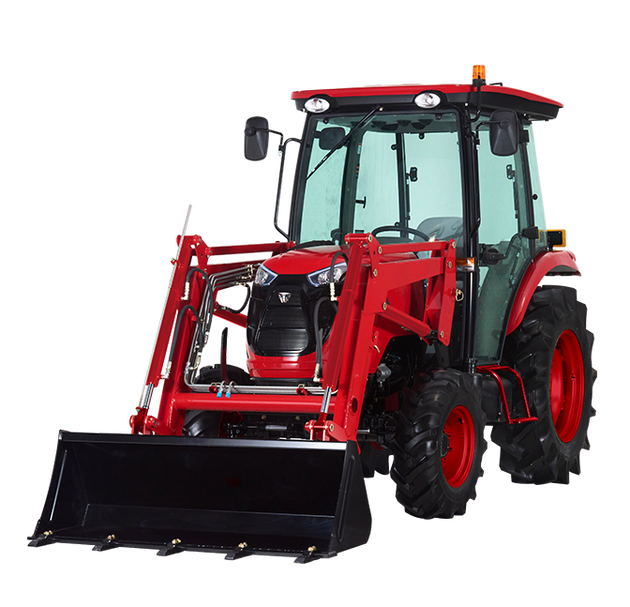

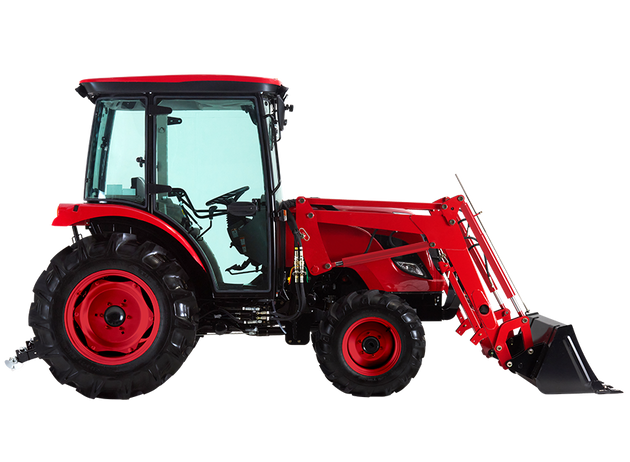

TYM T494C Compact Tractor
TYM T494C Compact Tractor Take on tough jobs in tight spaces with the T494C. This tractor seamlessly combines the top features of our compact and utility ranges, balancing high power output with exceptional maneuverability for outstanding results every time. Specifications: Model: T494C Engine Manufacturer: TYM T2300N2 Engine Power: 48.3 hp (36 kW) Rated Engine Speed: 2600 rpm Transmission Number of Speeds: F8 x R8 PTO Rear Speed: 540 rpm Performance Hitch Lift Capacity: 3822 lbs (1733 kg) Fuel Fuel Tank Capacity: 17.0 gallons (60 L) Dimensions Overall Length (with 3-point hitch): 141.3 inches (3590 mm) Overall Width: 63.8 inches (1620 mm) Wheelbase: 76.2 inches (1935 mm) Minimum Ground Clearance: 13.8 inches (350 mm) Weight Weight with Cab: 4198 lbs (1904 kg) Tires R1 Agricultural - Front: Farm Specialist 9.5-16 NHS TL 6PR R1 Agricultural - Rear: Farm Specialist 13.6-26 NHS TL 6PR Width Weight Height Length 4198 Pounds
-
TYM TL25 Loader
Description: Enhance the functionality of your T25 sub-compact tractor with TL25. With its impressive lift capacity and height, the TL25 front-end loader can help you handle heavier loads of materials. Specifications: Model: TL25 Lift Height: 2215 mm | 87.2 in Lift Capacity at Pivot Point (Max. Height): 626 kgf | 1380 lb Bucket Capacity: 0.19 cu. m | 6.7 cu. ft Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
-
TYM BY75 Backhoe
The BY75 complements the power and strength of the Series 2 compact tractors, enhancing performance and versatility without compromising safety. Specifications: Digging Depth: 2,317 mm | 91.2 in. Loading Height: 2,286 mm | 90 in. Backhoe Reach: 3,140 mm | 123.6 in. Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
-
TYM T494 Compact Tractors
Description: Take on tough jobs in tight spaces with the T494. This tractor seamlessly combines the top features of our compact and utility ranges, balancing high power output with exceptional maneuverability for outstanding results every time. Specifications: Engine Manufacturer: TYM T2300N2 (T494) Engine Power: T494: 48.3 hp | 36 kW T494C: 55 hp | 41 kW Rated Engine Speed: 2600 rpm Displacement: (Specific displacement not listed but consistent with power specs) PTO Rear: 540 rpm Fuel Tank Capacity: 17.0 gal | 60 L Dimensions and Capacity Overall Length with 3-Point Hitch: 141.3 in. | 3590 mm Overall Width: 63.8 in. | 1620 mm Wheelbase: 76.2 in. | 1935 mm Minimum Ground Clearance: 13.8 in. | 350 mm Weights Weight with ROPS: T494: 3871 lb | 1756 kg T494C: 3887 lb | 1763 kg Weight with Cab: T494C: 4198 lb | 1904 kg Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
-
TYM T474HC Tractor
Description: The exterior of the TYM T474HC Tractor/Loader/Backhoe demonstrates a sleek and rugged design with features to minimize operator effort. From sturdier cast iron linkages to an easy to operate hydrostatic controls, this tractor is engineered for productivity inside and out. Powerful features to drive tractor performance Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this compact tractor keep operators comfortable to take on challenges in warm or cold weather see the Cab model T474HC. Good clearance from the ground and overhead allows drivers to take on uneven terrain easily, whether in a barn, in wooded areas under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities and foldable ROPS, this tractor has the capabilities to perform light-to-medium duty jobs, all year round. Features: TYM T474HC Tractor/Loader/Backhoe Hydrostat (3-Range) Transmission 4-cylinder Kukje diesel engine with high output – Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium duty applications efficiently and productively. Easy to open hood for convenient maintenance – The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools. External lever to adjust rear implements – In addition to the in-cabin controls, this tractor has an external position lever near the 3-point hitch. This allows operators to adjust an implement position as soon as it is connected, without needing to go to the cabin. This enables quick and convenient switching between implements, enhancing tractor versatility. 3-point hitch with powerful lift capacity – The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging. Controls to speed up, slow down, raise or lower implements – Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed. High capacity fuel tank to support time intensive work – The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel. Specifications: TYM T474HC Tractor/Loader/Backhoe General Tractor Specs Transmission: Hydrostat Drive System 4 Wheel Drive Steering Hydrostatic Brake Wet Disc Gross Engine Power 48.3 hp PTO power 31.8 hp 3-Pt Lift 2646# Front End Loader Lift capacity at pivot point (max. height): 2152# Engine Engine manufacturer: Kukje, A2300N2 Type: Natural Aspiration Gross engine power: 48.3 hp PTO power: 31.8 hp Rated engine speed: 2600 rpm Number of cylinders: 4 Displacement: 139.5 cu. in. Air cleaner: Dual Dry Alternator: 12V, 70A Fuel system: Indirect Injection Powertrain Transmission type: 3-Range Hydrostat Max. traveling speed: 18.4 mph Brakes: Wet Disc Steering: Hydrostatic Hydraulic System Pump type: Dual Gear Pump Implement flow: 7.7 gpm Steering flow: 4.3 gpm Total flow: 11.9 gpm 3-point hitch: Cat I Hitch lift capacity: 2646# Hitch lift capacity at 24″ behind link ends: 1764# Lift control type: Position w/External Lever No. of standard remote valves: 1 Standard + 1 Optional PTO PTO type: Independent PTO control: Electric/Hydro PTO: Rear 540 rpm Capacities Fuel tank: 9.0 gal Coolant: 6.9 qt Crankcase: 6.8 qt Transmission/Hydraulics system: 8.5 gal Front axle: 8.6 qt Standard Tires R1 Agricultural – Front Farm Specialist 7-16 NHS TL 6PR R1 Agricultural – Rear Farm Specialist 11.2-24 NHS TL 6PR R3 Turf – Front Multi-Trac CS 27×8.50-15 NHS TL 4PR R3 Turf – Rear Multi-Trac CS 41×14.00-20 NHS TL 4PR R4 Industrial – Front Trac Chief 10-16.50 NHS TL 6PR R4 Industrial – Rear Xtra Grip 43×16.00-20 NHS TL 6PR Dimensions & Weights Length w/3ph, Cabin: 133″ Overall width, Cabin: 59.0″ Height to Cabin Cabin Roof: 92.5 Wheelbase: 68.9 in. Min. ground clearance: 12.8 in. Minimum turn radius with brakes: 106.7 in. Min. turn radius without brakes: 117.5 in. Weight with ROPS: 3,660# Width Weight Height Length 59 Inch 3660 Pounds 92.5 Inch 133 Inch
-
TYM T574HC TRACTOR
Description: The exterior of the TYM T474HC Tractor/Loader/Backhoe demonstrates a sleek and rugged design with features to minimize operator effort. From sturdier cast iron linkages to an easy to operate hydrostatic controls, this tractor is engineered for productivity inside and out. Powerful features to drive tractor performance Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this compact tractor keep operators comfortable to take on challenges in warm or cold weather see the Cab model T474HC. Good clearance from the ground and overhead allows drivers to take on uneven terrain easily, whether in a barn, in wooded areas under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities and foldable ROPS, this tractor has the capabilities to perform light-to-medium duty jobs, all year round. Features: TYM T474HC Tractor/Loader/Backhoe Hydrostat (3-Range) Transmission 4-cylinder Kukje diesel engine with high output – Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium duty applications efficiently and productively. Easy to open hood for convenient maintenance – The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools. External lever to adjust rear implements – In addition to the in-cabin controls, this tractor has an external position lever near the 3-point hitch. This allows operators to adjust an implement position as soon as it is connected, without needing to go to the cabin. This enables quick and convenient switching between implements, enhancing tractor versatility. 3-point hitch with powerful lift capacity – The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging. Controls to speed up, slow down, raise or lower implements – Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed. High capacity fuel tank to support time intensive work – The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel. Specification: TYM T474HC Tractor/Loader/Backhoe General Tractor Specs Transmission: Hydrostat Drive System 4 Wheel Drive Steering Hydrostatic Brake Wet Disc Gross Engine Power 48.3 hp PTO power 31.8 hp 3-Pt Lift 2646# Front End Loader Lift capacity at pivot point (max. height): 2152# Engine Engine manufacturer: Kukje, A2300N2 Type: Natural Aspiration Gross engine power: 48.3 hp PTO power: 31.8 hp Rated engine speed: 2600 rpm Number of cylinders: 4 Displacement: 139.5 cu. in. Air cleaner: Dual Dry Alternator: 12V, 70A Fuel system: Indirect Injection Powertrain Transmission type: 3-Range Hydrostat Max. traveling speed: 18.4 mph Brakes: Wet Disc Steering: Hydrostatic Hydraulic System Pump type: Dual Gear Pump Implement flow: 7.7 gpm Steering flow: 4.3 gpm Total flow: 11.9 gpm 3-point hitch: Cat I Hitch lift capacity: 2646# Hitch lift capacity at 24″ behind link ends: 1764# Lift control type: Position w/External Lever No. of standard remote valves: 1 Standard + 1 Optional PTO PTO type: Independent PTO control: Electric/Hydro PTO: Rear 540 rpm Capacities Fuel tank: 9.0 gal Coolant: 6.9 qt Crankcase: 6.8 qt Transmission/Hydraulics system: 8.5 gal Front axle: 8.6 qt Standard Tires R1 Agricultural – Front Farm Specialist 7-16 NHS TL 6PR R1 Agricultural – Rear Farm Specialist 11.2-24 NHS TL 6PR R3 Turf – Front Multi-Trac CS 27×8.50-15 NHS TL 4PR R3 Turf – Rear Multi-Trac CS 41×14.00-20 NHS TL 4PR R4 Industrial – Front Trac Chief 10-16.50 NHS TL 6PR R4 Industrial – Rear Xtra Grip 43×16.00-20 NHS TL 6PR Dimensions & Weights Length w/3ph, Cabin: 133″ Overall width, Cabin: 59.0″ Height to Cabin Cabin Roof: 92.5 Wheelbase: 68.9 in. Min. ground clearance: 12.8 in. Minimum turn radius with brakes: 106.7 in. Min. turn radius without brakes: 117.5 in. Weight with ROPS: 3,660# Width Weight Height Length 0 Inch 3660 Pounds 0 Inch 0 Inch
When it comes to finding parts for specific tractor models, you've got a range of options to ensure your equipment runs smoothly. Here's a detailed list of the models for which parts are readily available:
- Explorer Series: Focused on the Explorer 75T model, designed to handle tough terrains.
- Compact and Utility Models:
- Advanced Models:
- Heavy-Duty Options:
- High-Capacity Models:
- Land Series:
This lineup ensures that whether you're dealing with compact utility tasks or demanding agricultural operations, there are parts available to keep any of these models up and running efficiently.
How to Ensure Your Tractor Parts Are Compatible with Your Model and Year
When it comes to ordering the right tractor parts, compatibility with your specific model and year is crucial. Here's how you can make the right choice:
Start by carefully identifying the model of your tractor. Look for parts that include a detailed list of compatible tractor models. This information is usually clearly stated to help you determine if a part will fit your machine.
Pay close attention to any specific years that are mentioned. Some parts are designed for certain model years due to design tweaks and changes made by manufacturers. Ensuring that your tractor's year matches those listed can prevent compatibility issues.
Most part listings include a 'Fits Models' section. This list is invaluable for making sure you're selecting a part that will seamlessly integrate with your tractor.
If you’re unsure, consult a professional or a trusted dealer. They can offer expert advice and may even have access to cross-reference systems that can confirm part compatibility.
Before finalizing your order, double-check the model and year once more to ensure everything aligns. This simple step can save you from unnecessary hassle and return processes.
Following these steps will help you select the right parts the first time, ensuring your tractor remains in top working condition without unnecessary delays.
