LS Tractors
-
LS Tractor MT232HC- 31.7HP
Description: Specifications: Engine Type: 3-Cylinder, Liquid-Cooled, Diesel, NA, CRDI Model (Tier 4): Yanmar Engine HP (Gross): 31.7 HP PTO HP: 26.2 HP Rated Speed: 2,600 RPM Displacement: 100.2 cu. in. Fuel Tank Capacity: 11.4 gallons Alternator: 12V – 55 Amps Drive Train Transmission Type: HST (Hydrostatic Transmission) Number of Speeds: 3 Ranges Brakes: Wet, Multi-Disc Steering: Hydrostatic Power Steering PTO Type: Independent Rear PTO Speed: 540 RPM (Standard) Hydraulic System Control System: Position Implement Pump Flow: 6.7 gpm Steering Pump Flow: 5 gpm Total Hydraulic Flow: 11.7 gpm 3-Point Hitch Category: CAT I Hitch Lift Capacity (at Hitch End): 1,808 lbs Remote Valves: 1 Pair Dimensions Overall Length (Frame to Link): 125 inches Overall Width with Tires: 66 inches Wheelbase: 69 inches Height to Top: 90 inches Tire Size Ag (Front / Rear): 7 – 14 / 11.2 – 24 Industrial (Front / Rear): 27X8.50-15 / 43X16.00-20 VT (Front / Rear): 27X8.50-15 / 43X16.00-20 Turf (Front / Rear): 25X8.50-14 / 41X14.00-20 Weight Total Weight without Ballast: 3,721 lbs Width Weight Height Length 273 Kilograms 0 Inch
-
LS Tractor LL3001 Front End Loaders
Description: These quick-attach, skid-steer compatible front-end loaders have a higher lift capacity than the competition. And come standard with body-shielding grill guards. Specifications: Bucket (in.): 66 Maximum Lift height (in.): 94.3 Clearance with Attachment Dump (in.): 67 Reach at Maximum Height (in.): 14.4 Maximum Dump Angle (deg.): 48 Maximum Rollback Angle (deg.): 42.5 Digging Depth (in.): 4.8 Overall Height in Carry Position (in.): 51.2 Lift Capacity (Bucket Pivot Pin, MAX, Height) (lb.): 1,599 Lift Capacity (Pivot pin @ 1.5m) (lb.): 1,965 Breakout Force(@ Pivot pin) (lb.): 2,962 Approx. Weight (Loader w/o Bucket) (lb.): 741 Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
-
LS Tractor LL2102
LS Tractor LL2102 These quick-attach, skid-steer compatible front-end loaders have a higher lift capacity than the competition. And come standard with body-shielding grill guards. Specification: Maximum Lift Height (in.): 85.7 Clearance with Attachment Dump(in.): 65 Reach at Maximum Height (in.): 22 Maximum Dump Angle (deg.): 52 Maximum Rollback Angle (deg.): 43 Digging Depth (in.): 4.4 Overall Height in Carry Position (in.): 42.8 Lift Capacity (@ Pivot Pin) (lb.): 1,270 Breakout Force (@ Pivot pin) (lb.): 1,640 Approx. Weight (Loader w/o Bucket) (lb.): 638 GENERAL Lift Capacity 1,270 lb .Digging Depth 4.4 in .Maximum Lift Height 85.7 in. Weight 638 lb. Width Weight Height Length 638 Pounds
-
LS Tractor LB3001 Backhoe
Description: The LS Tractor LB3001 backhoe is a powerful and precise digging attachment explicitly designed for compatibility with the LS Tractor MT226E model. This backhoe is perfect for various intensive digging, trenching, and backfilling tasks in agriculture, landscaping, and light construction, offering deep digging capabilities and substantial stability. Specifications: Digging Depth (in.): 97.2 Reach from Centerline of Swing Pivot (in.): 127.2 Loading Height (in.): 76.2 Swing Arc (deg.): 160 Transport Height (in.): 81.8 Bucket Rotating (deg.): 180 Stabilizer Spread (Down Position) (in.): 67.5 Stabilizer Spread (Up Position) (in.): 50 Bucket Digging Force (lbs.): 3,663 Width Weight Height Length 0 Inch 3663 Pounds 0 Inch 0 Inch
-
LS Tractor LB2100
Description: LB2100 TRACTOR EXCAVATOR FOR THE LS TRACTOR MT3 TRACTOR A mini tractor excavator mounted on a 3-point three-point hitch, Cat. I, is an ideal tool designed to work with LS MT3 series tractors. The design, size and weight of the excavator allow it to be used in situations where the operation of a large machine is impossible or when the terrain does not allow the use of heavier equipment. The LB2100 tractor excavator has a very durable construction. Thanks to it, we can not only perform deep excavations up to a maximum of 2280 mm, but also easily transport the load by lifting the arm to a height of up to 1840 mm. The completely hydraulically powered tractor excavator is equipped with opening stabilizers, an efficient hydraulic pump, and during work, the operator uses the tractor seat by turning it backwards. The maximum possible discharge of the LB2100 excavator with the bucket positioned at an angle of 60 degrees is 1,840 mm. SPECIFICATION: State New Mark LS Tractor Maximum digging depth (mm) 2280 Weight (kg) 485 loading height (mm) 1840 Bucket rotation angle (°) 160 Maximum arm reach (mm) 3180 Stabilizer span (mm) 1745 Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
-
LS Tractor LB1107 Backhoe
Description: Since they don't require removal of the lower 3-point hitch arms, our sub-frame mounted, quick-attach backhoes are time-savers even before you start digging in. Specification: Digging Depth (in.): 77.8 Reach from Centerline of Swing Pivot (in.): 144.9 Loading Height (in.): 59.6 Swing Arc (deg.): 140 Transport Height (in.): 74.7 Bucket Rotating (deg.): 169.4 Stabilizer Spread (Down Position) (in.): 78.6 Stabilizer Spread (Up Position) (in.): 53.2 Bucket Digging Force (lbs.): 2,097 Shipping Weight (lbs.): 873 Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
-
LS Tractor MT242H – 42.5HP
LS Tractor MT242H – 42.5HP Features: Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility Much improved seat comfortability Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals) New hood design (LS Family look), Grill open space plus 20% LED head Lamp 1 Inch large tire size and four different tire options Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965lbs. New MT2E & MT2 (LL3303) 2,506lbs. Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs. TF-LCD instrument panel providing various information like, regen time, oil change interval, etc. E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift. Specifications: Engine Type: 4 Cylinder liquid-cooled Diesel, NA, CRDI Model (Tier 4): YANMAR Engine HP (Gross): 42.5 HP PTO HP: 34.8 HP Rated Speed: 2,600 RPM Displacement: 133.6 cu in Fuel Tank Capacity: 10.6 gal Alternator: 12V – 55 Amps Drive Train Transmission Type: HST (Hydrostatic Transmission) Number of Speeds: 3 Ranges Brakes: Wet, Multi-disc Steering: Hydrostatic Power Steering PTO Type: Independent Rear RPM: 540 (Standard) Hydraulic System Control System: Position Implement Pump: 6.7 gpm Steering Pump: 5 gpm Total Flow: 11.7 gpm 3-Point Hitch Category: CAT I Hitch Lift Capacity: 1,808 lbs Remote Valves: 1 Pair Dimensions Overall Length (Frame to Link): 125 in Overall Width (with Tires): 66 in Wheelbase: 74 in Height to Top: 95 in Tire Sizes Ag Tires (Front/Rear): 7 – 14 / 11.2 – 24 Industrial Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20 Versa Turf Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20 Turf Tires (Front/Rear): 25 x 8.50 – 14 / 41 x 14 – 20 Weight Total Weight (without ballast): 3,338 lbs Width Weight Height Length 3338 Pounds 0 Inch
-

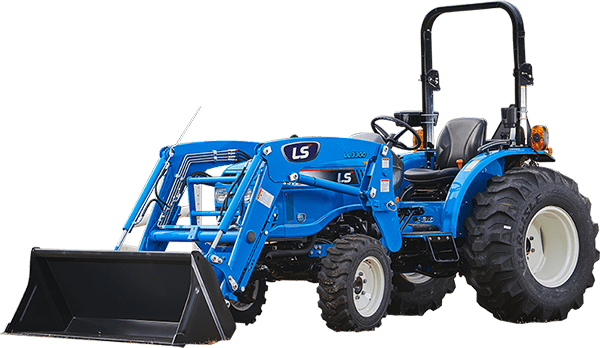

LS MT225E – 24.6HP
The MT225E Series is a high-value and feature rich compact utility tractor. Featuring high-capacity front-loader and three-point hitch is only the start of what this tractor series provides. Additional deluxe features like an electric engaged Independent PTO come standard. Category Specification ENGINE Type 3 Cylinder, liquid-cooled, Diesel, NA, IDI Model (Tier 4) Mitsubishi S3L2 Engine HP (Gross) 24.6 PTO HP 19.2 Rated Speed (RPM) 2,500 Displacement (cu. in.) 80.4 Fuel Tank Capacity (gal) 7.4 Alternator (V-A) 12 – 50 DRIVE TRAIN Transmission Synchro shuttle No. of Speeds F12 x R12 Brakes Wet, Multi Disc Steering Hydrostatic Power Steering PTO Type Independent Rear (rpm) Standard (540) HYDRAULIC SYSTEM Control System Position Implement Pump (gpm) 7.9 Steering Pump (gpm) 4.6 Total Flow (gpm) 12.5 Category, 3 pt hitch CAT 1 Hitch Lift Capacity (lb) 1,808 Remote Valves Option DIMENSION Overall Length, Frame to Link (in.) 118 Wheelbase (in.) 66 Overall Width with Tires (in.) 54 Height to Top of ROPS (in.) 88 TIRE SIZE Ag Front / Rear 7 – 14 / 11.2 – 24 IND Front / Rear 25 x 8.5 – 14 / 43 x 16 – 20 Turf Front / Rear 25 x 8.5 – 14 / 41 x 14 – 20 WEIGHT Total Weight Without Ballast (lbs.) 2,434
When it comes to finding parts for specific tractor models, you've got a range of options to ensure your equipment runs smoothly. Here's a detailed list of the models for which parts are readily available:
- Explorer Series: Focused on the Explorer 75T model, designed to handle tough terrains.
- Compact and Utility Models:
- Advanced Models:
- Heavy-Duty Options:
- High-Capacity Models:
- Land Series:
This lineup ensures that whether you're dealing with compact utility tasks or demanding agricultural operations, there are parts available to keep any of these models up and running efficiently.
How to Ensure Your Tractor Parts Are Compatible with Your Model and Year
When it comes to ordering the right tractor parts, compatibility with your specific model and year is crucial. Here's how you can make the right choice:
Start by carefully identifying the model of your tractor. Look for parts that include a detailed list of compatible tractor models. This information is usually clearly stated to help you determine if a part will fit your machine.
Pay close attention to any specific years that are mentioned. Some parts are designed for certain model years due to design tweaks and changes made by manufacturers. Ensuring that your tractor's year matches those listed can prevent compatibility issues.
Most part listings include a 'Fits Models' section. This list is invaluable for making sure you're selecting a part that will seamlessly integrate with your tractor.
If you’re unsure, consult a professional or a trusted dealer. They can offer expert advice and may even have access to cross-reference systems that can confirm part compatibility.
Before finalizing your order, double-check the model and year once more to ensure everything aligns. This simple step can save you from unnecessary hassle and return processes.
Following these steps will help you select the right parts the first time, ensuring your tractor remains in top working condition without unnecessary delays.
