Description
Description:

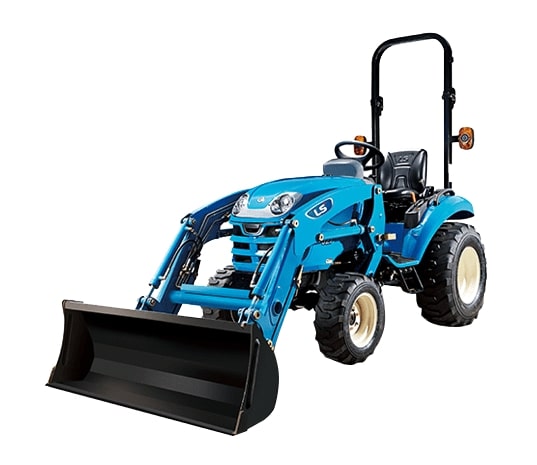

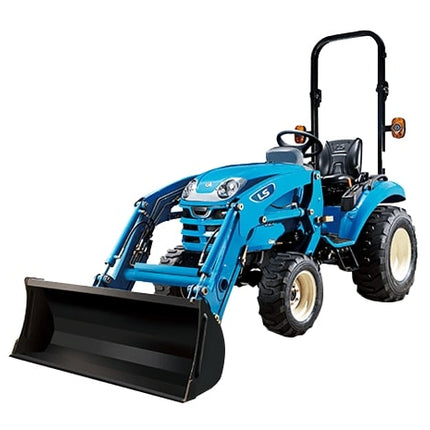

The XJ Series offers versatility that compact customers appreciate. Ample strength and durability allows you to work all day with a large number of LS implements and attachments. The XJ is not simply limited to a tractor and loader configuration, it can be equipped with a backhoe, mid-mount mower, snow blower, as well numerous three-point implements. Versatility and performance make this compact tractor a leader.
Specifications:
Engine:
- Type: 3-cylinder, Indirect-injection, Water-cooled
- Model (Tier 4): Mitsubishi S3L2
- Engine HP (Gross): 24.4
- PTO HP: 18.5
- Rated Speed (RPM): 2,500
- Displacement (cu in): 80.4
- Fuel Tank Capacity (gal): 6.6
- Alternator: 12V – 50 Amps
Drive Train:
- Transmission: Hydrostatic Drive
- No. of Speeds: 2 Ranges
- Brakes: Wet, Multi Disc
- Steering: Hydrostatic Power Steering
PTO:
- Type: Independent
- Mid PTO: Standard (2,000 rpm)
- Rear PTO: Standard (540 rpm)
Hydraulic System:
- Implement Pump (gpm): 5.9
- Steering Pump (gpm): 2.6
- Total Flow (gpm): 8.5
- Category, 3 pt hitch: CAT 1
- Hitch Lift Capacity (lb): 1,433
- Lift Control Type: Manual Position
Dimensions:
- Overall Length with 3pt (in): 103
- Wheelbase (in): 59
- Minimum Overall Width with Industrial Tires (in): 44.9
- Height to Top of ROPS (in): 92.3
Tire Size:
- Industrial Front/Rear: 23 x 8.5 – 12 / 33 x 12 - 16.5
- Turf Front/Rear: 23 x 8.5 – 12 / 33 x 12.5 – 16.5
Weight:
- Total Weight without Ballast (lbs): 1,609
