Description

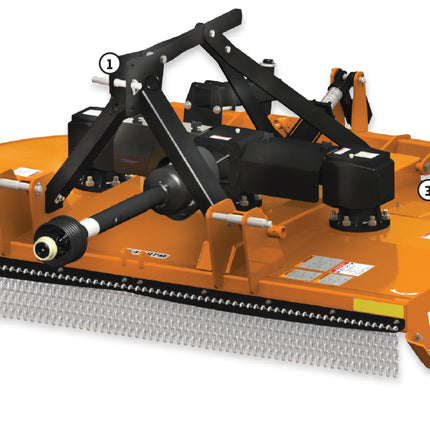

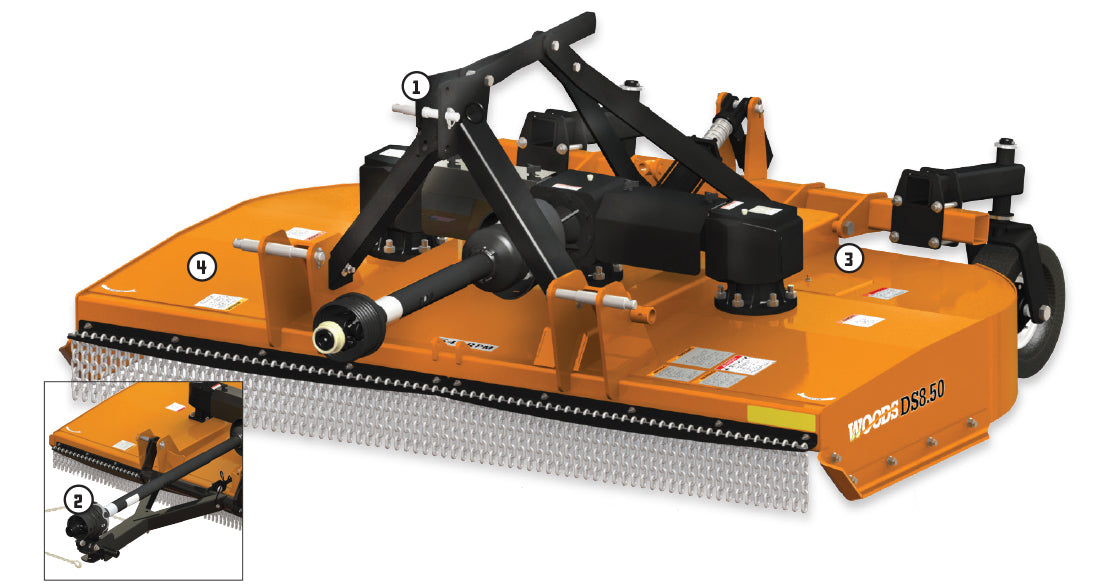

Woods MDS8.30 Dual-Spindle Cutters
Easy Connection
Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals.
Additional Features:
- Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
- PTO Lock Collar (Pull-Type Only) holds lock collar in a pulled-back position for easier tractor connection.
- Large Blade Access Window for quick and easy blade maintenance from the top of the deck.
- Smooth Sloped Deck easily sheds water and debris.

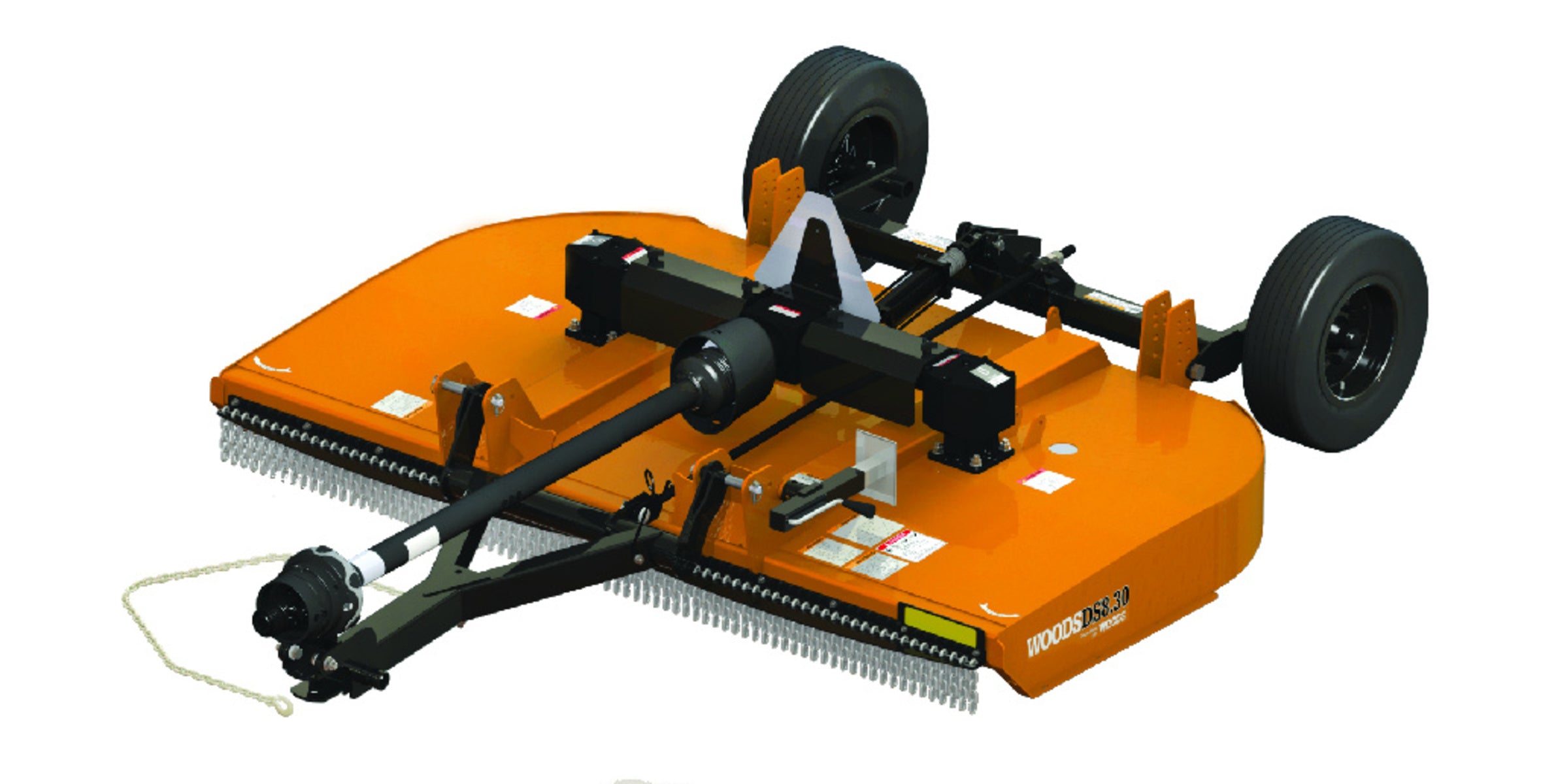

- CV Drive (Pull-Type Only) for less maintenance and smoother operation
Specification:
-
Product Tier: Standard-Plus
-
Tractor PTO (Minimum HP): 45
-
Tractor PTO Speed: 540 rpm
-
Hitch: CAT 1 or 2 / clevis
-
Hydraulic Variable Offset: N/A
-
Cutting Width: 96 in
-
Cutting Capacity Diameter: 1.5 in
-
Adjustable Cutting Height: 2 – 12 in
-
Blade Tip Speed: 15,200 fpm
-
Blade Size: .5 x 4 in
-
Deck Side Depth: 10 in deep
-
Deck Thickness: .135 in
-
Weight: 1,215 lbs
- Wheel Selection:
- Laminated, severe-duty new ag
- Foam filled new ag
- 15" rims
- Gearbox Rating:
- 100 hp center
- 75 hp spindle (ratings based on field testing)
-
Optional Dual-Wheels: No
-
Quick-hitch Compatible: Yes
-
Driveline with Slip Clutch: CAT 4
-
Gearbox Warranty: 10 years
-
Structure Warranty: 2 years
| Width |
Weight |
Height |
Length |
| 0 Inch |
1215 Pounds |
0 Inch |
0 Inch |
