Description
Description:

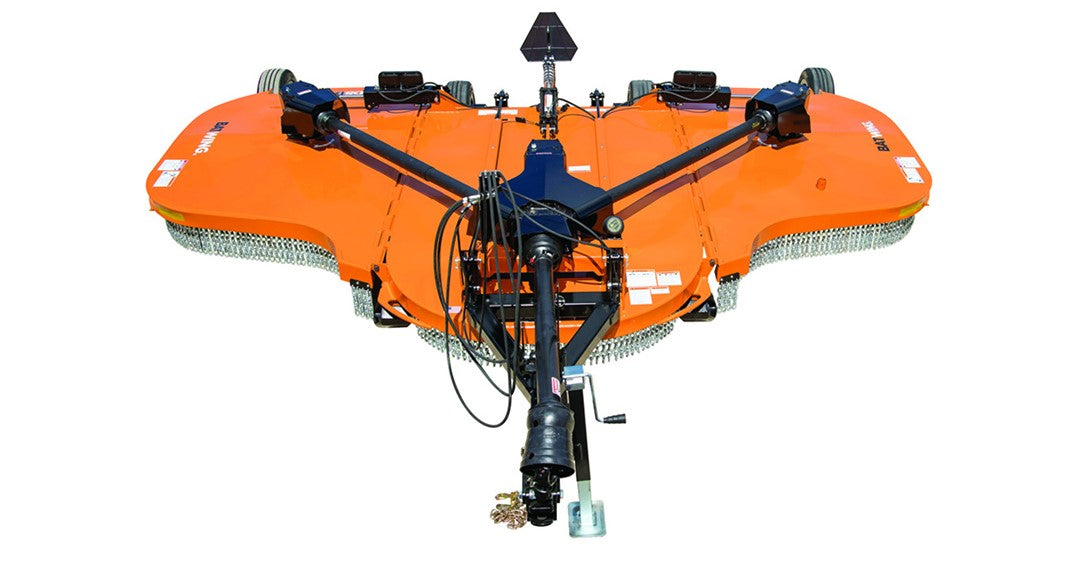

The Woods Equipment BW15.51W Batwing™ Slasher is a standard-duty flex wing slasher. It has a 4.57m (15’) cut and has a cutting capacity of 65mm diameter material. The splitter gearbox is 210hp and the spindle gearboxes are 200hp. The BW15.51W has a 50mm output shaft. Wings can operate at 90° up and 22° down. Wings can be operated in a vertical position allowing for slashing over banks.
The Woods BW15.51W 15ft Batwing Flex Wing Slasher Series range have a standard duty, heavy duty and extreme heavy duty series for tractors with a maximum PTO horsepower of 250hp. The cutting capacity ranges from 65mm diameter material to 115mm diameter material. The flex wing operating range is 90° up and 22° down. The flex wings can be operated in the vertical position allowing for slashing over banks. The extra heavy output shaft allows the operator to cut heavier material.
The PTO Assist Lift System takes the weight off the shaft for the ease of hooking up the PTO shaft by the operator. The independent suspension in the wheels allows floatation for a smoother ride, less vibration on slasher and a more precise cut. The 25.5 inch new foam filled 20ply tyres will prevent any tyre punctures. The clean line top prevents the build up of trash in the top of the slasher for easy cleaning.
Features:
- Extra heavy output shaft allows the operator to cut heavier material
- PTO Assist Lift System takes the weight off the shaft for the ease of hooking up the PTO shaft by the operator.
- Independent suspension in the wheels allows floatation for a smoother ride, less vibration on slasher and a more precise cut.
- The 25.5 inch new foam filled 20ply tyres will prevent any tyre punctures
- Clean line top prevents the build up of trash on the top of the slasher for easy cleaning
- Quality inputs, Quality product: made in the USA with American steel
- Highest OH&S rated slashers: change blades from above the machine
- Reduce downtime: Quick Change Blade System – change blades within minutes
- Increased durability: 38mm (1.5”) blade pin is 4x stronger than the standard 19mm (3/4”) bolt on other slashers
- Protect gearbox: stump jumping disc standard so blades can do a 360° rotation to minimise impact
- Superior pasture management: does not leave a windrow, efficient distribution of material
- Unrivaled 10 year gearbox warranty
Specifications:
-
Tractor Horsepower: 45 hp – 180 hp
-
Gearbox Horsepower: 210 hp (Splitter), 200 hp (Spindle)
-
Category: Standard Duty
-
Cutting Width: 4.57 m (15 ft)
-
Cutting Capacity: 65 mm
-
Cutting Height Range: 50 mm – 380 mm
-
Transport Width: 2.4 m
-
Quick Change Blade Pins: Yes
-
Deck Design: Industry-leading smooth, sloped deck, 4 mm thickness
-
PTO Drive: Cat 6 CV input PTO drive with driveline lift assistance
-
Deck Drives: Cat 4 deck drives with 2-plate slip clutches
-
Wing Operating Range: 90° up / 22° down, rounded wings with curved leading edge
-
Skids: Heavy-duty replaceable “bolt-on” formed side skids on wings
-
Shielding: Integrated chain shielding to prevent damage
-
Wing Hinge Pin: 25 mm full length
-
Stump Jumper: Yes
-
Access Window: Access window on top of deck for easy blade change – exclusive feature
-
Blade Size: 12.7 mm x 101.6 mm
-
Hitch: Swivel Clevis Hitch
-
Output Shaft: 50 mm output shaft
-
Centre Spring: No
-
Axle Arms: Axle Springs
-
Tip Speed: 15,000/16,000 fpm (blade tip speed for 540/1000 rpm PTO)
-
Tyres: 4 x 25.5 x 8-14 foam-filled severe duty ag 20 ply tyres
-
Warranty: 10 year limited gearbox warranty; 2 year deck warranty
-
Options: Dual Wheels, LED Lights, Side Throw
