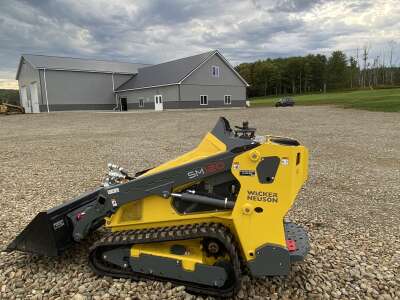

The SM120 uses Wacker Neuson's ergonomic mini-loader controls, while maintaining operator comfort features such as padding and a spring suspension for a better ride and added stability. The high hinge pin of the SM120 provides a 5'3" bucket dump height and allows for easy loading into high sided trucks and dumpsters. The wide (11") track width provides among the lowest ground pressures on the market, minimizing incidental damage to the work site.
All Day Comfort
- Large, spring-suspended operator platform provides comfort and a stable base for the operator.
- Fine tuned, forward angled joysticks, position the operator’s hands in a neutral position to reduce fatigue.
- Plush padding provides comfort and stability; Additional creature comforts include a cup holder, 12v charging port and storage compartment.
Extra Wide Tracks
- The SM120 has extra Wide Tracks that reduce ground pressure to among the lowest in the class, which reduces the potential for site damage and provides a stable ride.
Premium Performance

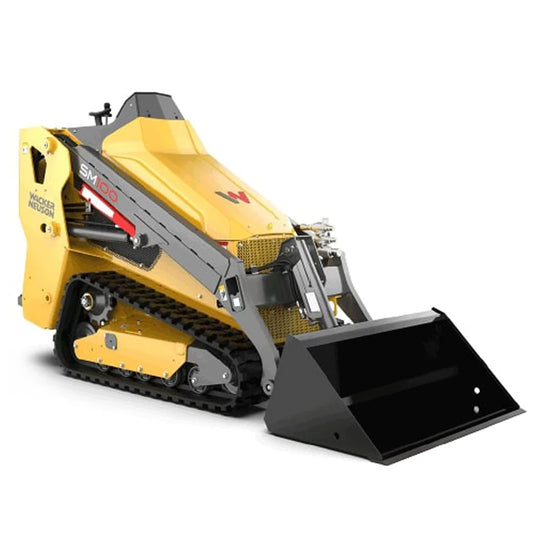

- The SM100 is powered by a 24.7 horsepower Yanmar diesel engine providing high torque and a flat power curve to enhance productivity through fast cycling times and expectational pushing power.
- 13 gpm of auxiliary hydraulic flow is available to power a wide variety of money saving attachments.
Professional Grade Undercarriage
- Durable undercarriage reduces maintenance costs and Total Cost of Ownership through innovative design and quick maintenance.
- Sealed idlers and triple flanged rollers provide added surface area and engagement to reduce wear and de-tracking.
- Achieving optimal track tension is quick and painless with an integrated grease cylinder track tensioner.
Highlights
Compact Design
Industry Leading Safety Features
All Day Comfort
Technical Data
Hydraulic Flow rate 12.9 gal/mi
Auxiliary relief pressure 3,045.0 psi
Mechanical - Output Details
Ground Pressure (standard track) 2.9 psi
Travel speed 5.2 m/H
Mechanical Details
Overall Length without bucket 108.3 "
Overall Length with Bucket 126.0 "
Overall width without bucket 41.0 "
Height 58.2 "
Bucket Hinge Pin Height 85.7 "
Bucket roll back at ground 25.0 °
Bucket roll back at maximum height 92.0 °
Angle of departure 25.0 °
Bucket dump height at maximum
height 62.8 "
Bucket dump angle at maximum
height 38.0 °
Operating weight 3,300.3 lb
Track width 11.0 "
Ground clearance 7.8 "
Length of Track on Ground 43.0 "
Dump reach at maximum height 21.9 "
Engine
Cooling Water-cooling
Cylinder 3.0
Cylinder capacity 77.3 Inch3
Operating power 24.7 hp
Operating Engine speed 2,600.0 1/min
Manufacturer Yanmar
Engine designation 3TNV80 FT
Operating Fluids
Fuel Tank capacity 16.9 gal US
Chassis
Tip Load 3,507.6 lb
Rated Operating Capacity at 50% Tip Load 1,752.7 lb
Rated Operating Capacity at 35% Tip Load 1,225.8 lb
