Description
Description:

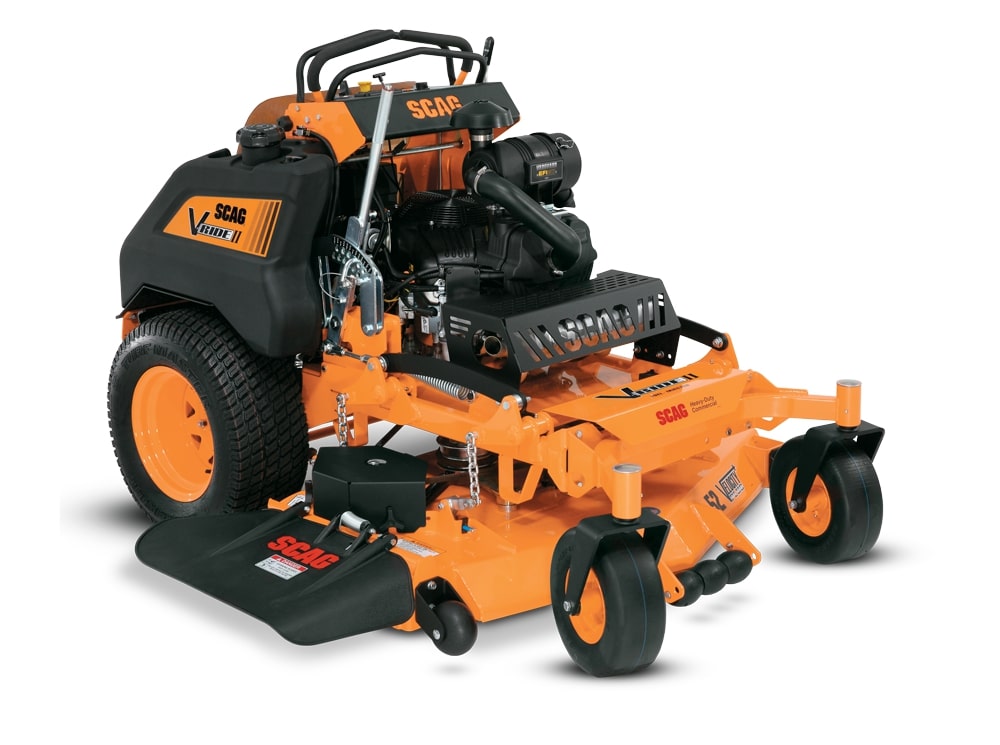

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.
48", 52" or 61" Cutting Width

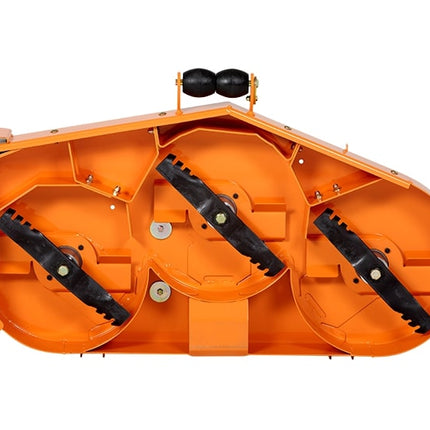

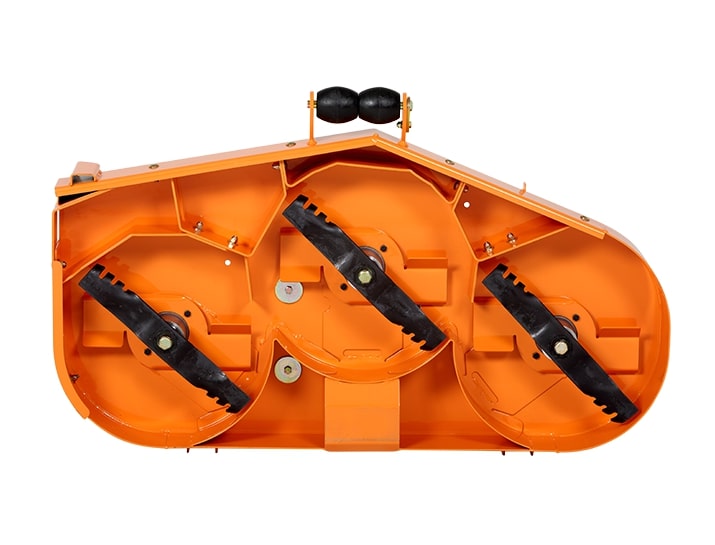

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths. An Advantage Cutter Deck is featured on 32″ and 36″ widths
Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.
The Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.
Strength — Scag’s tough cutter-blade spindles and Tri-Plate construction ensure solid performance and long life. A replaceable trim-side wear pad protects deck from damage.
Productivity — An extra-large discharge opening, paired with the Turbo Baffle, enhances discharge for even clipping dispersal.
Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.
Engines: Kawasaki FT Series Engines
Commercial-Grade Power
The new Kawasaki® FT Series engines with patented Vortical air filtration blaze new trails.
Kawasaki® FT Series engines are designed and built to handle heavy loads. The Vortical air filtration system muscles out grass and debris while large, easy-to-access integrated clean-out ports amp up your efficiency and keep you cutting.
Other features include:
90° V-twin
High-efficiency, centrifugal air intake system
Dual-element air filtration with reinforced filter
Large, easy-to-access integrated clean-out ports
Pressurized lubrication system
Electronic spark ignition
Automatic compression release
Internally vented carburetor with fuel shut-off solenoid
Cast-iron cylinder liners
Specification:
Specification - V-Ride II General: Total Fuel Capacity: 5 gallons (32″)
6.75 gallons (36″)
8 gallons (48″, 52″, and 61″)
Drive Tires: 20″ x 6.5″-10″ (32″)
20″ x 8″-10″ (36″)
24″ x 9.5″-12″ (48″ and 52″)
24″ x 12″-12″ (61″)
Caster Tires: 11″ x 4″-5″ (32″ and 36″)
13″ x 5″-6″ (48″ and 52″)
13″ x 6.5″-6″ (61″)
Seat: Extra-large comfort cushion
Drive System:
Drive System Type: Dual Pump and Motor
Pumps: Hydro-Gear 10 cc (32″ and 36″)
Hydro-Gear 12 cc (48″, 52″, and 61″)
Motors: Parker 12 ci (32″ and 36″)
Parker 14 ci (48″, 52″ and 61″)
Forward Ground Speed: 8.5 mph (32″ and 36″)
10.5 mph (48″, 52″ and 61″)
Reverse Ground Speed: 5 mph
Parking Brake: Hand lever
Deck:
Cutting Widths: 32″, 36″, 48″, 52″, and 61″
Type: Advantage (32″ and 36″)
Velocity Plus™ (48″, 52″, and 61″)
Cutting Height: 1.5″ to 4.5″ in .25″ increments
Deck Lift: Hand lever
Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. 32″ model features dual-plate.
Spindles: Cast-iron housing with tapered roller bearings.
Blade Engagement: Ogura GT2.5 (150 ft lb) – (32″, 36″, 48″, and 52″)
Ogura GT3.5 (250 ft lb) – (61″)
Adjustable air-gap for extended life.
Length: 69.5″
Tracking Width: 48″
Width (Chute Down): 65.25″
Width (Chute in Transport Position): 53.75″
Height: 47.25″
Weight: 1,000-1,022 lb
