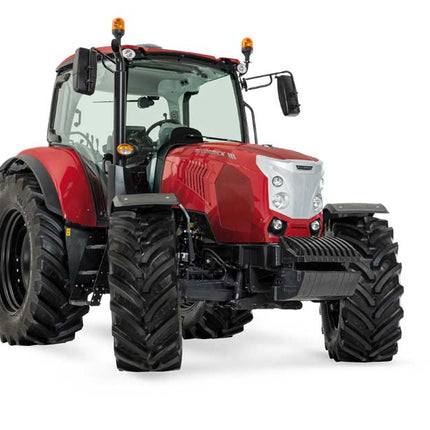

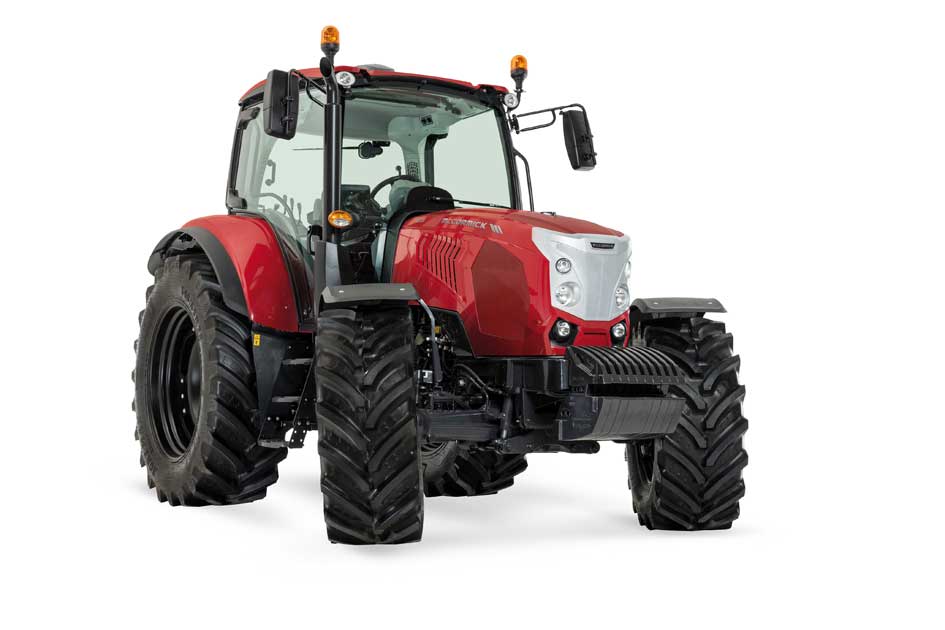

X6.135 X6 SERIES — MCCORMICK MEET YOUR NEW FARMHAND Each McCormick tractor reflects the passion and dedication of those involved in designing, testing and producing this incredible line-up of tractors. The X6 Series tractors make a statement with power, versatility, and efficiency. Built to be an economical, reliable “workhorse” around the farm, the X6 Series offers a simple solution to those needing a strong, dependable tractor. This model combines powerful performance with basic features and modern styling. Boasting a powerful FPT F36 engine, the X6 generates a high sustained torque that keeps the wheels turning and gets work done.
X6 X6.135
ENGINE
Rated power (97/68/EC - ISO TR 14396) hp 127
Max power (97/68/EC - ISO TR 14396) hp 127
Rated engine speed rpm 2200
Engine speed at max power rpm 1900
Max torque at 1300 rpm Nm 518
Torque backup 36% 30%
Manufacturer - Engine type FPT - F36
Stage V / Tier 4 Final exhaust after-treatment system DOC + DPF + SCR
Cylinders / Displacement / Valves 4 / 3.6 l / 16V
Air filter system dry air cleaner
Air intake system turbo aftercooled
Fuel injection system electronically-controlled high pressure common rail
Maintenance 500 hours maintenance interval
Cooling system matrix radiator package
Cooling fan • belt-driven fan - o viscous fan
Engine Memo Switch
•
CAPACITIES
Fuel tank 170
AdBlue / DEF tank 23
Cooling system 10
TRANSMISSION
Type • electrohydraulic
No. of gears - std • 36 FWD +12 REV with XtraShift HML & RPS
No. of gears - with creeper o 48 FWD +16 REV with XtraShift HML & RPS
Minimum speed km/h 1.5 without creeper - 0.3 with creeper (IR 750mm)
Engine speed at 40 km/h rpm • 1893
Engine speed at 50 km/h rpm o 2200
Transmission control hand lever
Forward/Reverse shuttle • Reverse Power Shuttle (RPS) with modulation control
REAR PTO
Type • electrohydraulic
Speeds • 540 / 540E / 1000 / 1000E with HML
Ground speed PTO
o
Engine speeds at rated PTO speeds rpm 1944 / 1580 / 1952 / 1586
Rotation - spline shaft type clockwise (viewed from tractor rear) - • 1-3/8" PTO shaft with 6 splines - o 1-3/8" PTO shaft with 21 splines
FRONT AND REAR AXLES
Front rigid axle • wide with brakes - o narrow with brakes
Front suspended axle
Traction type 4WD
Front differential lock Hydralock full locking differential
Rear differential lock • electrohydraulic
Rear axle - flanged type
BRAKING SYSTEM
Front braking system • automatic 4WD engagement when braking - o with front brakes
Rear braking system ring piston hydraulic brake
Trailer braking system • Dual-line hydraulic brake as per MR - o single-line hydraulic brake or CUNA - o dual-line pneumatic brake*
Park Lock
HYDRAULIC SYSTEM
Hydraulic piston pump with CCLS system for hitch & remotes + steering - flow rate l/min • 110 + 38
Rear remote valves - type, number, flow rate • mechanical, up to 3 - o mechanical up to 3 + electronic 2
Flow divider / Flow selector
Free-flow return
•
Mid-mounted remote valves - type, number, flow rate l/min 2 mechanical with multifunction joystick - 80
Wheelbase mm 2420
Max height over cab without beacon lights mm 2623 - measured with tyres 380/70R24 - 480/70R34
Max height from top of cab to rear axle centre mm 1935
Max length with front weights - Track width mm (4256-4552) - measured with tyres 380/70R24 - 480/70R34
Steering radius mm 4400 measured with tyres 480/65R24 - 540/65R38
Shipping weight - measured with average specs kg 4800
Gross vehicle weight kg 8500 (wide front axle) - 8000 (narrow front axle)
Max front and rear tyres sizes - (Index Radius -IR) mm 480/65R24 - 540/65R38 (IR 800mm)
Front weight support / Front tow pin
