Description

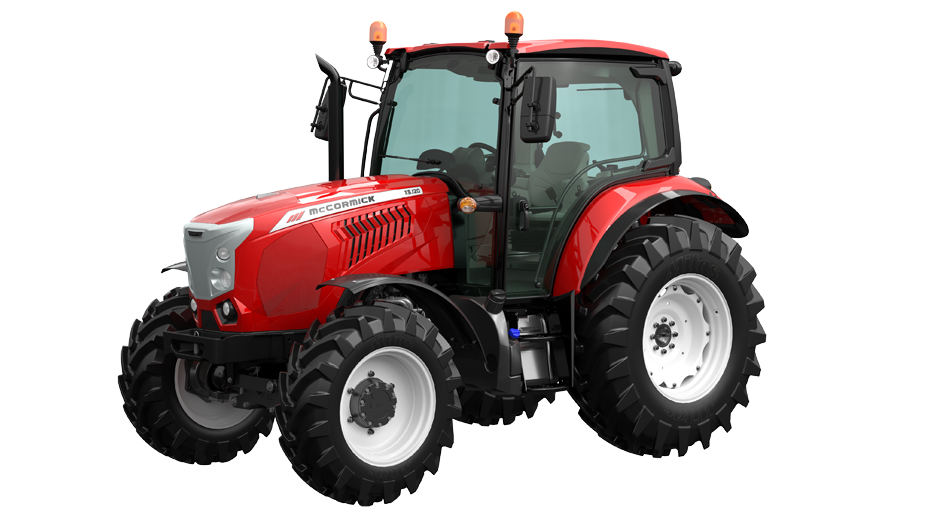

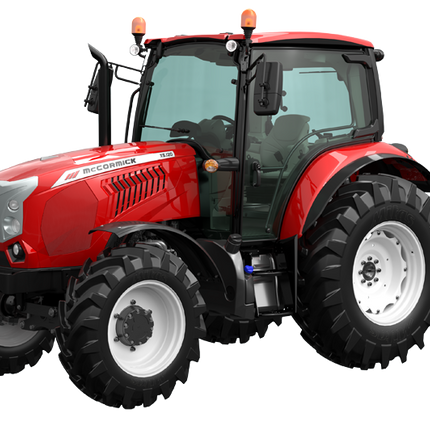

The McCormick X5.100 Efficient is a 4 wheel drive tractor manufactured by McCormick since 2021. It has a weight of 4.1 tons and is powered by an engine with a power output of 70 kW. The tractor can travel at a speed of 40 km/h and has a transport height of 2.623 meters. It is equipped with a cabin as special equipment.
Tractor Model X5.100 X5.110 X5.120
Performance
Max. ISO Engine HP @ 2000 RPM HP 95.2
Max. ISO PTO HP @ 2000 RPM* HP 80
Max. Engine Torque @ 1400 RPM lb ft 395
Engine
Engine Type FPT F36 engine Tier 5, TACR, DOC + SCRoF, 3.6L, 4-cyl 16v
Engine Size 3.6 Liter, 4-cylinder
Fuel Capacity gal (35.6
Drive Train
Transmission Type Transmission (12 x 12) with 4 gears and 3 ranges - 40km/h
Optional Transmission Transmission (32 x 32) with hydraulic power shuttle, 2-speed power-shift
Differential Lock Front: Hydralock full locking differential; Rear: Electrohydraulic
4wd Front Axle 4WD Hydralock front axle with integrated brakes
Tire type Radial tires standard
Hydraulics, 3-point Hitch, PTO
Hydraulic System/Max. Flow Open center with tandem hydraulic pumps
Hydraulic Flow Rate gpm (lpm) 62 (32)
Rear Remote Valves 2 Rear spool valves S/D acting
Rear 3-point Hitch Type 3-point linkage, Cat. 2, telescopic ball ends, pin-type telescopic stabilizers. Lift capcacity 9,920 lb (4,500 kg)
Rear 3-point Lift Capacity @ Hitch lb (kg) 9,920 (4,500)
Rear PTO 540/1000 rpm PTO - Hydraulic engagement, controls on rear fender
Operator’s Area
Operator’s Area Cab or 2-post folding ROPS
Seat and Front Dash ROPS: Adjustable vinyl seat, mechanical suspension; tilt steering wheel
Cab: Cloth seat, air suspension; tilt and telescopic steering wheel
Wheelbase in (mm) 92.7 (2,355)
Height Over ROPS in Raised Position in (mm) 103 (2,622)
Height Over Cab in (mm) 103.26 (2,623)
Overall Length without Front Weights in (mm) 9,832.61 (4,460)
Base Weight without Ballast lb (kg) 15,432.36 (7,000)
