Description

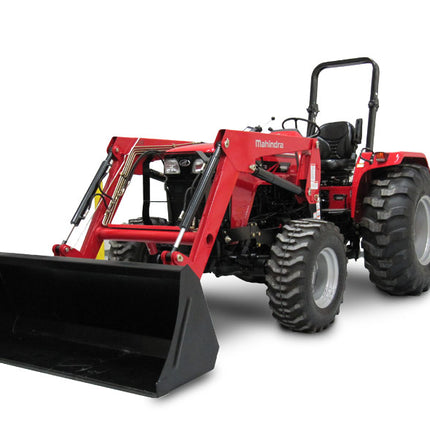

One of the most popular tractors is the Mahindra 4540 utility tractor. This model features a Mahindra mCRD engine, which is a 4-cylinder, direct-injection water-cooled that has no diesel particulate filter giving you less complexity and means no operator involvement and cleaner exhaust emissions at a lower cost. It's available in 2WD and 4WD. The engine cracks out 41 (hp) horsepower at 2300 rpm.
The transmission is the same across the model range and positioned on the transmission hump between the operator's feet. Each lever, hardware, and the pedal is designed to be heavy-duty, unlike some competitors models. On the right side of the floorboard you'll find a ratchet lock parking brake lever, right heel differential lock, foot throttle (there is a hand throttle as well), and split brake pedals. On the left side, you'll find the clutch pedal and a pull up/push down 2WD/4WD lever. It's all outlined by rubber anti-slip mats.
The loader of the Mahindra 4540 offers a quick attach skid steer loader couplers and are standard on all 4500 series tractors. This allows for ultra-fast front implement attachment.
One of the most well known features is the mComfort Mechanical Suspension Seat. It's designed for maximum comfort and convenience. The mComfort seats come equipped with a retractable seat belt, armrest, and rainwater drain as standard.
The rear of the Mahindra 4540 features a live PTO and three-point hitch. Mahindra offers a wide range of implements and accessories, including rotary mowers, blades, and rakes. You can also get post hole diggers, box blades, rotary brooms, snow blowers, and so much more. Some even feature a backhoe!
ENGINE:
Type: Four strokes, Indirect injection, water-cooled
Engine HP [kW] @ RPM: 70 (52) @ 2300
Displacement (in3): 161.6
Number of Cylinders: 3
Firing Order: 1-3-2
Bore & Stroke (in): 3.78 X 4.8
Compression Ratio: 17.2:1
Low Idle RPM: 850 ± 50
High Idle RPM: 2500 ± 50
Injection Pump: BOSCH PFR TYPE
Muffler: Horizontal External type
Air Cleaner: Dual Dry
Fuel: Diesel
Fuel Tank gal (L): 18.5 (70)
POWER TAKE OFF:
Type: Independent
PTO Operation: Clockwise from rear of tractor
Rear PTO RPM: 540 @ 2300
PTO HP [kW]: 53.8 (40.1)
DASH INSTRUMENTS:
Tachometer & Hour Meter
Fuel Gauge
Temperature Gauge
Indicators for Warning Messages
4WD Engaged Lamp
Park Brake Indicator
SAFETY EQUIPMENT:
Foldable ROPS w/ Retractable Seat Belt
Safety Start Switches
Turn Signals/ Hazard Lights
Mechanical Wet Disc Brakes
Electric Key Shut Off
Parking Brake Indicator on Dash
Water Temperature Gauge
Horn
|
DRIVE TRAIN:
Transmission: Power Shuttle
Number of Speeds: 12F / 12R
Clutch: Dry Single Plate
Brakes: Wet Disc Brake, Mechanical
HYDRAULICS:
Type: Open Center with position and draft control, Telescopic Stabilizers, & Flex Links
Steering Pump Output gpm (L/min): 4.9 (18.5)
Implement Pump Output gpm (L/min): 11.8 (44.7)
Maximum Total Flow gpm (L/min): 16.7 (63.2)
3-Point Hitch: CAT II
Lift Capacity lb (kg): 3528 (1600)
Standard Rear Valve Fitment: 1 Spool (Std)
Optional Fitments: 2 Spools
Working Pressure (psi): 214 Kgf/㎠
Features: 2 Spool Valves
OPERATOR STATION:
7 Pin Socket
Wide Platform Steps
Color Coded Controls
Radio Included
Exterior Mirrors
Cup Holders
2 Tool Trays
Roof Vent
Dome Light
2 F/ R Work lights
HVAC
mComfort Seat w/ adjustable Mechanical Suspension
FRONT AXLE:
Power Steering, Tilt able
Center Pivot, Reverse Eliot Type
Level Gears for Wider Steering
|
ELECTRICAL:
Battery: 12 V, 96 Ah
Alternator: 12 V, 90 A
Starter Capacity: 12 V, 2.2 kW
Lights: Headlights, Tail Lights and Stop Lights
Gauges: Indicators for: Glow plug, Charge, Engine Oil Pressure
Switches: Safety start switches (Rnage lever, PTO lever, Clutch pedal)
Cold Temperature Starting Aid: Starter motor with pre-heater
Indicator Lights: Head lamps, side indicators, Rear parking brake & indicator light On dash board indicators for battery charging, turn signal, P
Implement Light Socket: 2 Rear signal lights
DIMENSIONS:
Paint: High Visibility Paint
mComfort Seat: mComfort Seat w/ Mechanical Suspension
Standard Installed Radio: Radio (Opt)
Overall Length in (mm): 126.9 (3223.6)
Overall Width in (mm): 62.6(1,590)
Overall Height in (mm): 102 (2590.8)
Wheelbase in (mm): 73.7 (1872)
Minimum Ground Clearance in (mm): 13.8 (350)
Turning Radius ft (m): 12.5 (3.8)
Weight lb (kg): 5390 (2445)
WHEELS & TIRES:
AG [Front/Rear]: 9.5x16 6PR / 14.9x24 6PR
IND [Front/Rear]: 12x16.5 6PR / 16.9x24 8PR
CAPACITIES:
Fuel Tank gal. (L): 16 (60.6)
Cooling System gal. (L): 2.5 (9.4)
Engine Oil gal. (L): 2 (7.5)
TRANS & DIFF gal. (L): 9.2 (34.8)
Front Axle & Final Drive Case gal. (L): 4.3 (16.2) |
