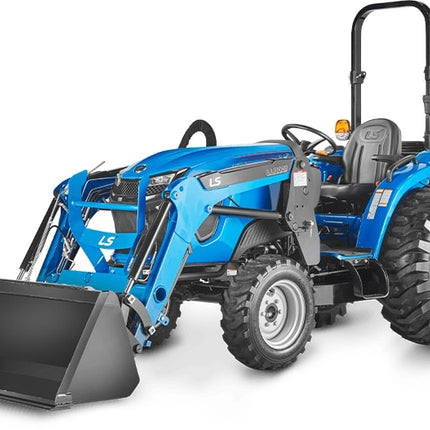

LS Tractor MT226E – 24.6HP

VendorLS Tractor
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Description:

Specifications:

ENGINE:

Type: 3 Cylinder, Liquid-cooled, Diesel, Naturally Aspirated (NA), Indirect Injection (IDI)
Model (Tier 4): MHI
Gross Engine HP: 24.6 hp
PTO HP: 19.2 hp
Rated Speed (RPM): 2,500 RPM
Displacement: 80.4 cubic inches
Fuel Tank Capacity: 10.6 gallons
Alternator: 12V – 50 Amps

DRIVE TRAIN:

Transmission Type: Synchro Shuttle
Number of Speeds: F12 X R12 (12 Forward, 12 Reverse)
Brakes: Wet, Multi-disc
Steering: Hydrostatic Power Steering

PTO (Power Take-Off):

Type: Independent
Rear PTO Speed: 540 RPM (Standard)

HYDRAULIC SYSTEM:

Control System: Position
Implement Pump Flow: 7.9 gallons per minute (gpm)
Steering Pump Flow: 4.6 gpm
Total Flow: 12.5 gpm
3-Point Hitch Category: Category I (CAT I)
Hitch Lift Capacity at Hitch End: 1,808 lbs
Remote Valves: Optional

DIMENSIONS:

Overall Length (Frame to Link): 119 inches
Overall Width with Tires: 66 inches
Wheelbase: 66 inches
Height to Top: 95 inches

TIRE SIZES:

Agricultural (Ag) Front / Rear: 7 – 14 / 11.2 – 24
Industrial (IND) Front / Rear: 27X8.50-15 / 43X16.00-20
Versa Turf (VT) Front / Rear: 27X8.50-15 / 43X16.00-20
Turf Front / Rear: 25X8.50-14 / 41X14.00-20

WEIGHT:

Total Weight without Ballast: 2,985 lbs

Width	Weight	Height	Length
	2985 Pounds		0 Inch

Product form

Description: Specifications: ENGINE: Type: 3 Cylinder, Liquid-cooled, Diesel, Naturally Aspirated (NA), Indirect Injection (IDI) Model (Tier 4): MHI Gross Engine...

Free pickup in our shop(s) Free pickup in our shop(s)

SKU: LS Tractor MT226E – 24.6HP-MT226E

2 in stock

$22,150.00
