Description:

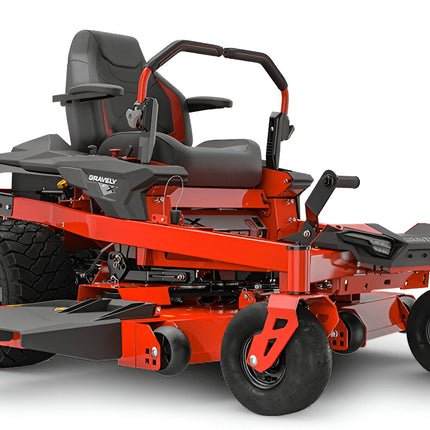

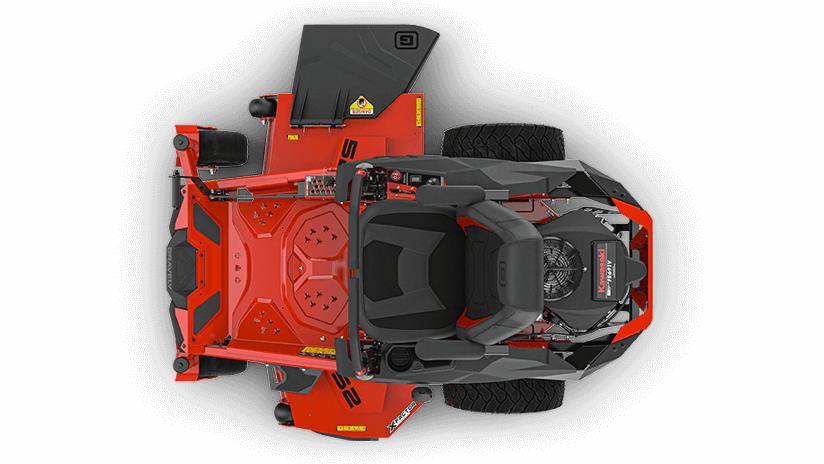

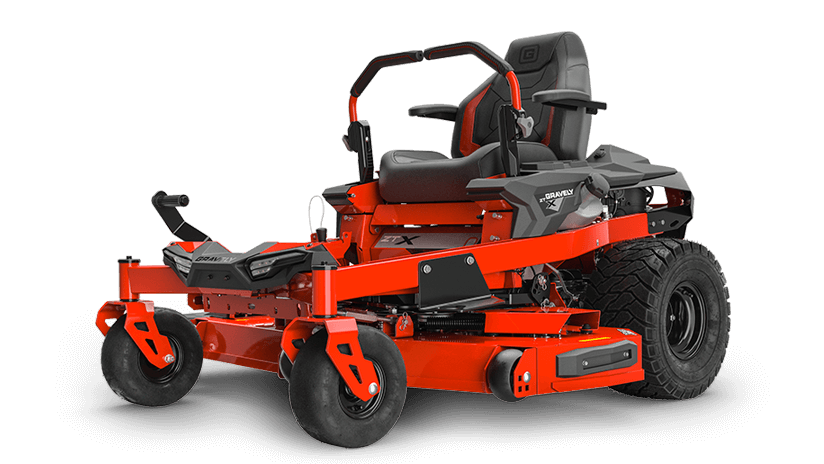

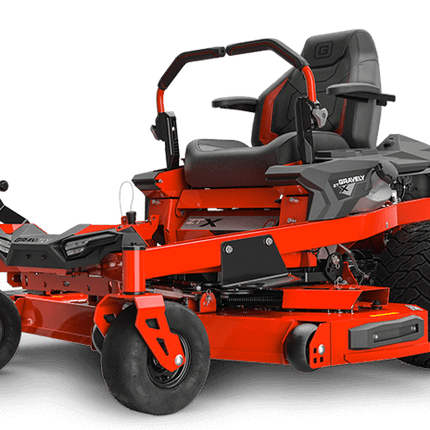

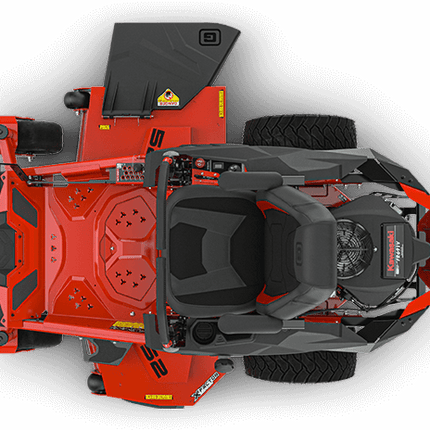

This is the residential lawnmower that’s often mistaken for a commercial mowing machine. It’s no surprise with its heavy-duty construction, professional features, and legendary Gravely performance. When you have a ZT X on your lawn, your neighborhood will know you’re upping your lawn game to the next level.
Specifications:
Engine
-
Brand: Kawasaki® FR691V
-
Horsepower: 23 HP
-
Displacement: 44.3 in³ / 726 cc
-
Fuel System: Gas
-
Fuel Capacity: 3.5 gal / 13.2 ltr
Drive System
-
Type: Hydrostatic
-
Transmission: Hydro-Gear® Serviceable EZT® Transaxles
-
Brake Type: Integrated Parking Brake
Performance
-
Driver Position: Sit
-
Ground Speed (Forward): 7 mph / 11.3 kph
-
Ground Speed (Reverse): 3 mph / 4.8 kph
Wheels
-
Front Wheels: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
-
Rear Wheels: 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm)
Electric
-
Battery Capacity: 190 CCA
-
Number of Batteries: 1
-
Battery Voltage: 12V
-
Battery Type: AGM
-
Battery Size: U1 Compatible
Deck
-
Size: 52 in / 132.1 cm
-
Coverage per Hour: 3.6 acres / 1.5 hectares
-
Spindle Type: Mechanical
-
Material: 11 gauge
-
Construction: Fabricated X-Factor®
-
Discharge Configuration: Side
-
Cutting Height (Min): 1.5 in / 3.8 cm
-
Cutting Height (Max): 4.5 in / 11.4 cm
-
Cutting Width: 52 in / 132.1 cm
Dimensions
-
Weight (Assembled): 695 lb
-
Length: 74.5 in / 189.2 cm
-
Width (Chute Up): 55.6 in / 141.2 cm
-
Width (Chute Down): 66.7 in / 169.4 cm
