Description

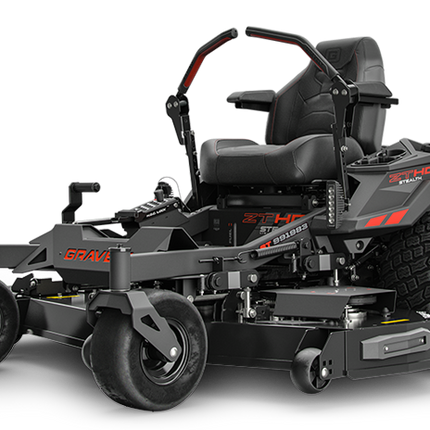

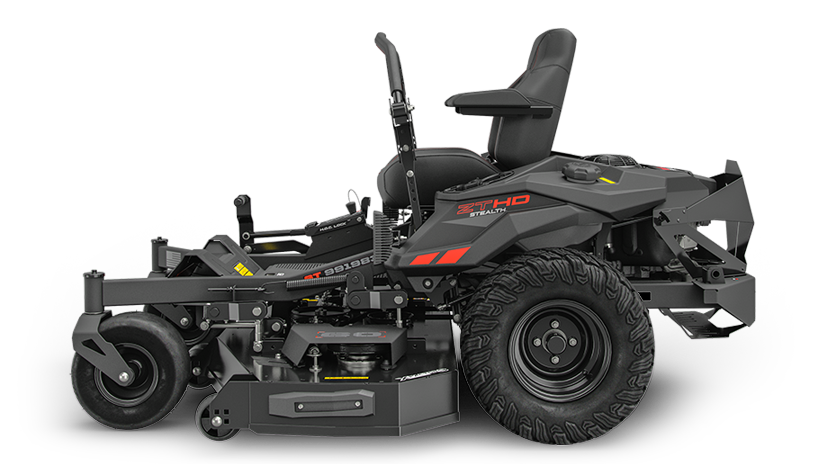

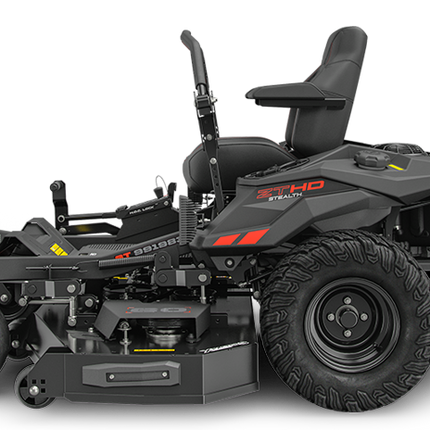

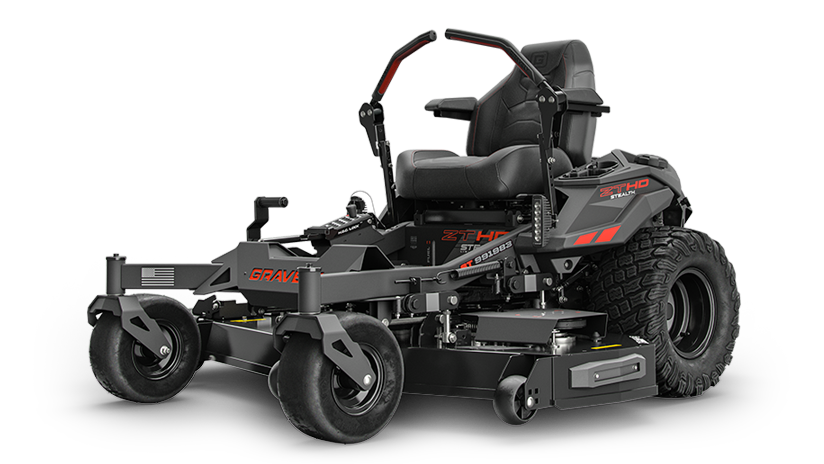

Gravely ZT HD 60 Stealth Kawasaki
IT CAME IN UNDER THE RADAR, BUT IT WON'T GO UNNOTICED.
The ZT HD STEALTH 60 features a military-inspired design with tactical graphics and badging powered by a beefy Kawasaki® FR730V. A striking two-tone paint scheme riding on gloss black wheels keeps the stealth in a class all its own. When you hit the ignition and engage its blades, you know you’re riding on a machine designed and built unlike anything on any other lawn.
| ENGINE |
Kawasaki FR730V |
|
|
| HORSEPOWER |
24 |
|
|
| ENGINE DISPLACEMENT |
44.3 in / 726 cc |
|
|
| FUEL SYSTEM |
Gas |
|
|
| FUEL CAPACITY |
5.1 gal / 19.3 ltr |
|
|
| DRIVE SYSTEM |
Hydro-Gear ZT-3100 Transaxles |
|
|
| TRANSMISSION TYPE |
Hydrostatic |
|
|
| BRAKE TYPE |
Lever Activated Parking |
|
|
| DRIVER POSITION |
Sit |
|
|
| GROUND SPEED FORWARD |
8 mph / 12.9 kph |
|
|
| GROUND SPEED REVERSE |
4 mph / 6.4 kph |
|
|
| WHEELS FRONT |
13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 15.2 cm) |
|
|
| WHEELS REAR |
22.0 x 12.0 in - 12.0 in (55.9 x 30.5 cm - 30.5 cm) |
|
|
| BATTERY CAPACITY |
190 CCA |
|
|
| NUMBER OF BATTERIES |
1 |
|
|
| BATTERY VOLTAGE |
12 |
|
|
| BATTERY TYPE |
AGM |
|
|
| BATTERY SIZE |
U1 Compatible |
|
|
| DECK SIZE |
60 in / 152.4 cm |
|
|
| COVERAGE HOUR |
4.8 acres / 1.9 hectares |
|
|
| SPINDLE TYPE |
Mechanical |
|
|
| DECK MATERIAL |
10 ga |
|
|
| DECK CONSTRUCTION |
Fabricated X-Factor 3 |
|
|
| DISCHARGE CONFIGURATION |
Side |
|
|
| CUTTING HEIGHT MIN |
1.5 in / 3.8 cm |
|
|
| CUTTING HEIGHT MAX |
5 in / 12.7 cm |
|
|
| CUTTING WIDTH |
60 in / 152.4 cm |
|
|
| WEIGHT (ASSEMBLED) |
845 lb / 383.2 kg |
|
|
| LENGTH |
79 in / 200.7 cm |
|
|
| WIDTH (CHUTE UP) |
63.7 in / 161.8 cm |
|
|
| WIDTH (CHUTE DOWN) |
74.8 in / 190 cm |
