Description
Description:

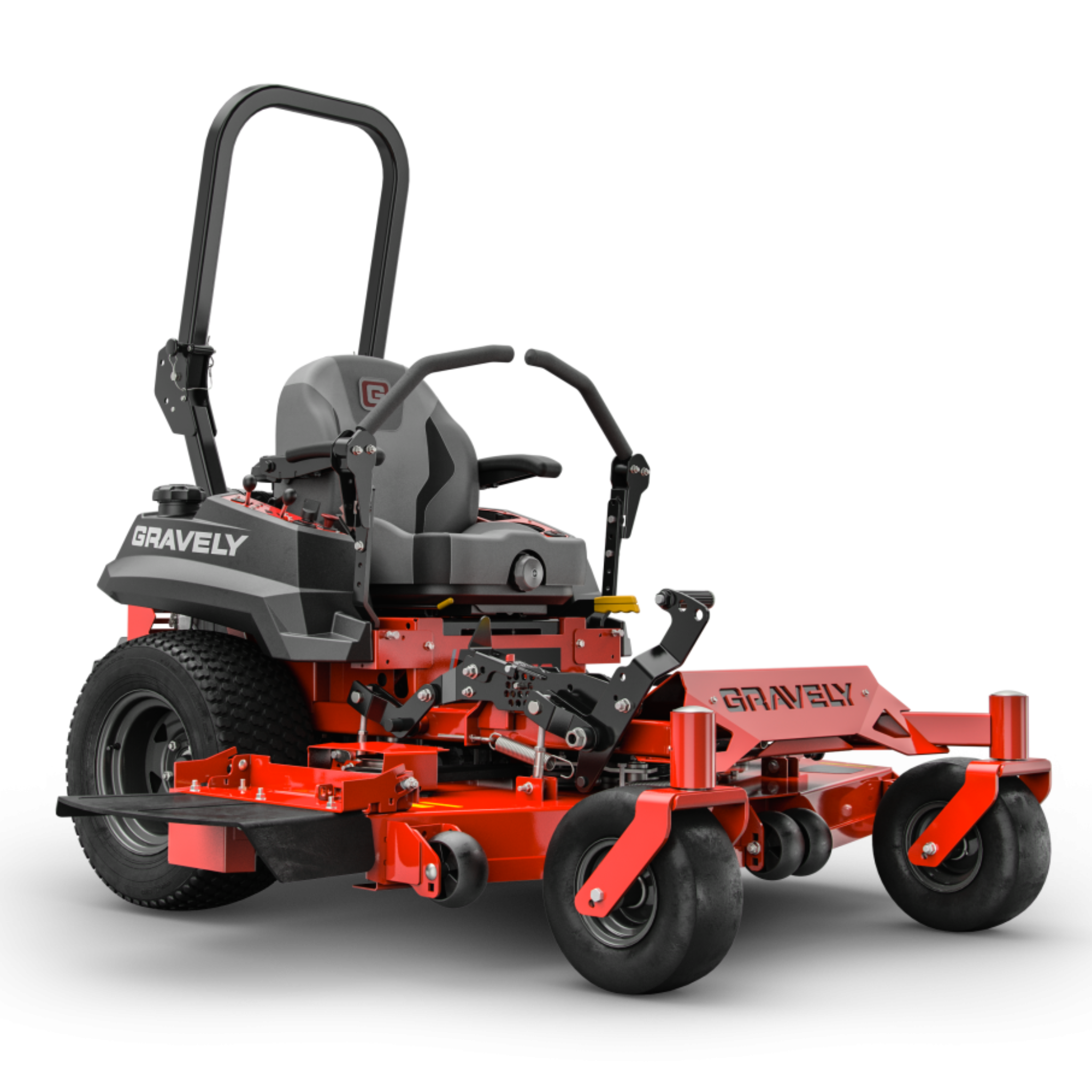

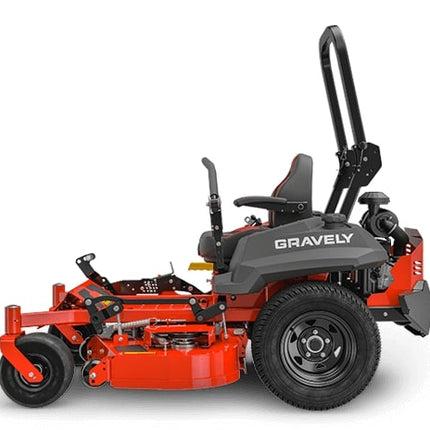

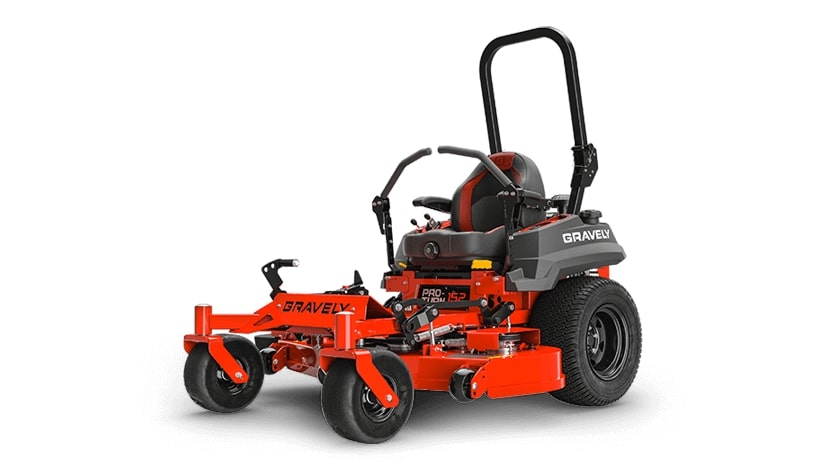

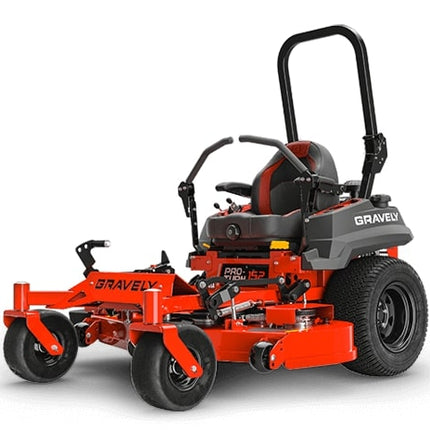

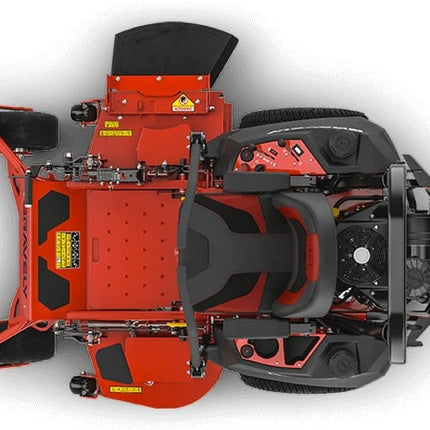

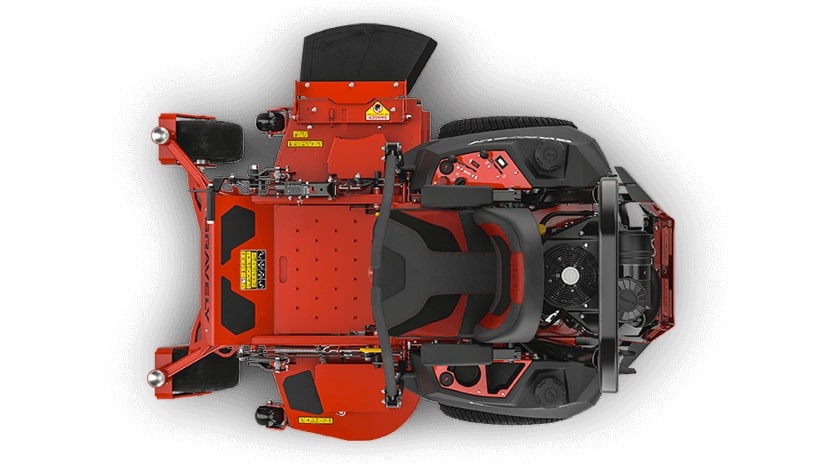

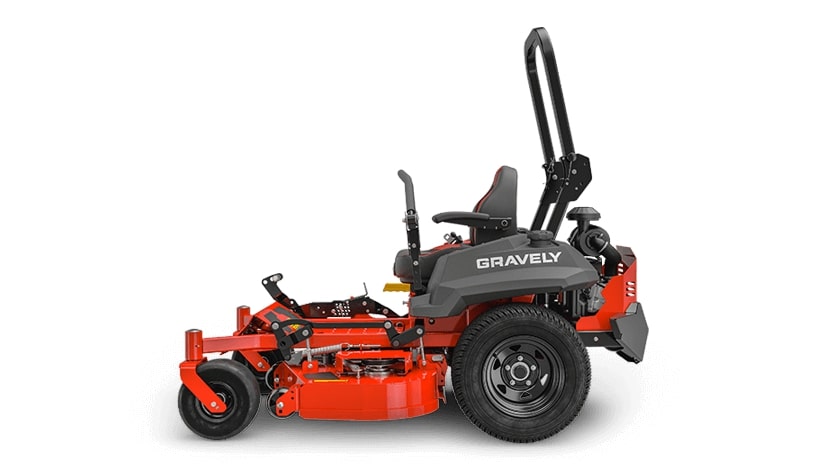

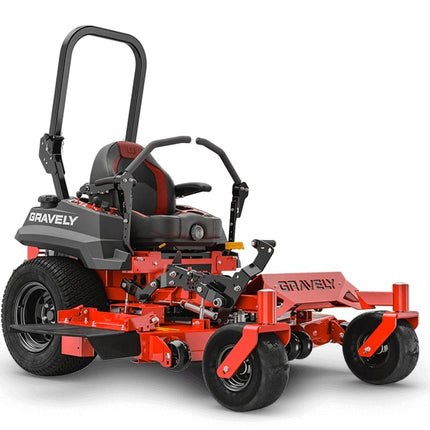

Gravely Pro-Turn® 152 Kawasaki® Zero-Turn Mower
Put your best foot forward with the power and performance of the PRO-TURN 100.
Every inch is of value on the PRO-TURN 100. Packed with Gravely brand’s time-tested features, this hard-working mower stands up to your toughest jobs.
Features:
- X-Factor® II Deck
- The 7-gauge, X-Factor® II deck is fabricated from top to bottom, providing industrial-strength peace of mind that’s reinforced with an exclusive limited lifetime warranty.
- CBT System
- Our exclusive Constant Belt Tension (CBT) system ensures that belt tension is maintained, keeping the blade tip speed and cutting results consistent.
- Seating System
- A full-suspension seat provides added lateral stability and improved durability with vibration control and a four-inch seat slide for all-day comfort.
Specification:
Engine:
-
Model: Kawasaki® FX691V
-
Horsepower: 22
-
Displacement: 44.3 in³ / 726 cc
-
Fuel System: Gas
-
Fuel Capacity: 10 gal / 37.9 ltr
Drive System:
-
System: Hydro-Gear® ZT-3400 Transaxles
-
Transmission Type: Hydrostatic
-
Brake Type: Lever Activated Parking
Operator Features:
-
Position: Sit
-
Forward Speed: 10 mph / 16.1 kph
-
Reverse Speed: 5 mph / 8 kph
Wheels:
-
Front: 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 15.2 cm)
-
Rear: 23.0 x 10.5 in - 12.0 in (58.4 x 26.7 cm - 30.5 cm)
Electric:
-
Battery Capacity: 300 CCA
-
Battery Type: Lead Acid - Maintenance Free
-
Battery Size: U1
Deck:
-
Size: 52 in / 132.1 cm
-
Coverage per Hour: 5.2 acres / 2.1 hectares
-
Material: 7 ga (7-gauge)
-
Construction: Fabricated X-Factor® II
-
Discharge Configuration: Side
-
Cutting Height Range: 1 in / 2.5 cm to 5 in / 12.7 cm
-
Cutting Width: 52 in / 132.1 cm
Dimensions:
-
Weight (Assembled): 1079 lb / 489.3 kg
-
Length: 78.5 in / 199.4 cm
-
Width: 52 in / 132.1 cm
-
Width (Chute Up): 55.5 in / 141 cm
-
Width (Chute Down): 67.5 in / 171.5 cm
| Width |
Weight |
Height |
Length |
| 52 Inch |
1079 Pounds |
0 Inch |
78.5 Inch |
