Description

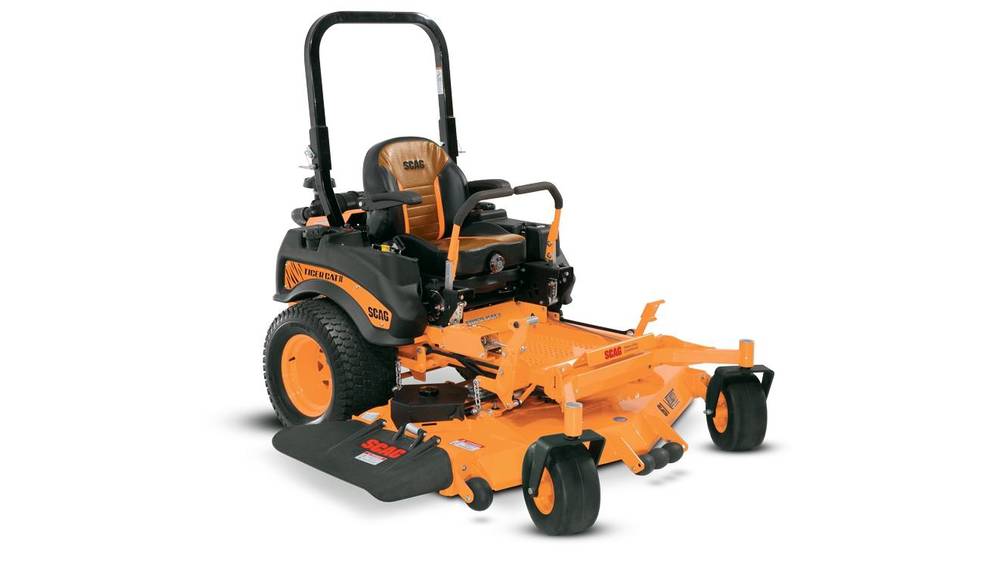

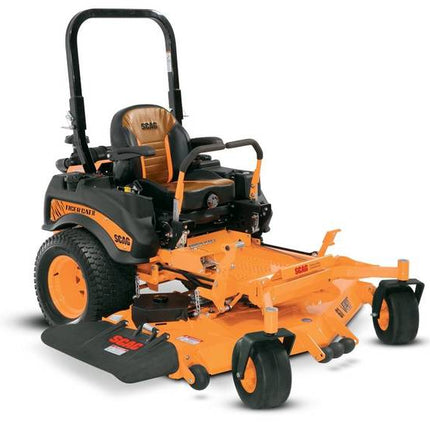

CLAIM YOUR TERRITORY. The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.
STCII-61V-36BV
Description
61" Velocity Plus™ Cutter Deck, 36 HP Briggs Vanguard™ BIG BLOCK™
Specifications
- Description: 61" Velocity Plus™ Cutter Deck, 36 HP Briggs Vanguard™ BIG BLOCK™
- Total Fuel Capacity: 9.5 gallons
- Drive Tires: 24" x 9.5"-12" (48" and 52"); 24" x 12"-12" (61")
- Caster Tires: 13" x 6.5"-6", flat-free
- Seat: 4-point iso-mounted mid-back mounted on operator-suspension platform
- Drive System Type: Dual Pump and Motor
- Pumps: Hydro-Gear 12 cc
- Motors: Parker 14.5 ci
- Forward Ground Speed: 12 mph
- Reverse Ground Speed: 5 mph
- Parking Brake: Foot-operated pedal
- Cutting Widths: 48", 52" and 61"
- Type: Velocity Plus™
- Cutting Height: 1" to 5" in .25" increments
- Deck Lift: Adjustable foot-operated pedal
- Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
- Spindles: Cast-iron housing with tapered roller bearings.
- Blade Engagement: Ogura GT3.5 (250 ft lb); Adjustable air-gap for extended life.
Dimensions
- Length: 80"
- Width (chute down): 73.5"
- Width (chute in transport position): 62.75"
- Height (ROPS folded): 46.75"
- Height (ROPS up): 67.25"
- Weight: 1,257-1,277 lb
